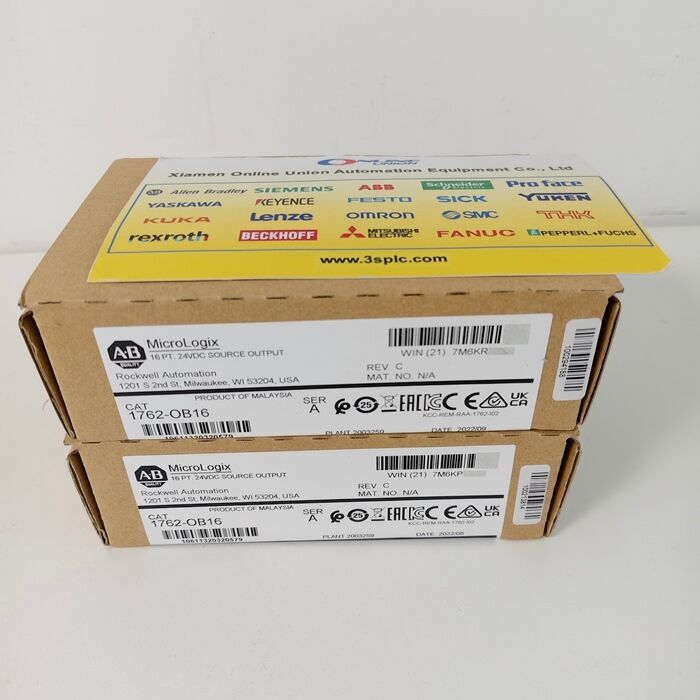

Name: 1762-OB16 Allen-Bradley MicroLogix 16-Point Digital Output Module
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 1762-OB16
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

1762-OB16 Allen-Bradley MicroLogix 16-Point Digital Output Module

Allen-Bradley MicroLogix output module

16-point digital output module

MicroLogix PLC output module with warranty

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1762-OB16

Request A Quote

Product Details

Output Points Relay Output:

16 (Form C, NO/NC)

Output Points Transistor Output:

16 (24V DC Source)

Load Capacity:

2A @ 30V DC / 250V AC (per Channel)

Signal Delay:

8ms (on/off)

Power Consumption:

~10W (typical)

Communication Protocol:

EtherNet/IP, DeviceNet

Highlight:

Allen-Bradley MicroLogix output module

16-point digital output module

MicroLogix PLC output module with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

MPL-B320P-MJ74AA Allen Bradley Low Inertia AC Servo Motor

Get Best Price

2198-D057-ERS3 Allen Bradley Kinetix 5700 Dual Axis Servo Drive

Get Best Price

2198-D020-ERS3 Allen Bradley Kinetix 5700 Dual Axis Servo Drive

Get Best Price

1794-IA16 Allen Bradley Flex I/O AC Input Module

Get Best Price

Contact Now

Product Description

1762-OB16 Allen-Bradley MicroLogix 16-Point Digital Output Module

The Allen-Bradley 1762-OB16 is a versatile 16-point digital output module designed for the MicroLogix series of programmable logic controllers (PLCs), including the MicroLogix 1100, 1200, and 1400. It delivers reliable on/off control for industrial automation applications, with configurations available for both relay and transistor outputs to suit diverse load requirements. This module is ideal for driving solenoid valves, motor starters, indicator lights, and other discrete field devices.

Key Features

Flexible Output Configurations

Relay Output (Form C Contacts): 16 independent relays with normally open (NO) and normally closed (NC) contacts, supporting high-current loads up to 2A per channel at 30V DC or 250V AC
Transistor Output (24V DC Source): 16 solid-state MOSFET outputs, each capable of sourcing 2A at 24V DC, with fast switching (8ms on/off delay) and low power consumption (~10W)

Robust Isolation & Protection

Channel-to-Group Isolation: Relay outputs are grouped into 4 isolated sets (4 channels per group), enabling independent power supplies for different loads. Transistor outputs feature optocoupler isolation to prevent electrical interference
Overcurrent & Short-Circuit Protection: Built-in circuitry safeguards against load faults, extending module lifespan in harsh industrial environments

Seamless Integration

MicroLogix Compatibility: Supports up to 4 modules with MicroLogix 1100, 6 with MicroLogix 1200, and 7 with MicroLogix 1400
EtherNet/IP & DeviceNet Support: Communicates via industrial protocols for real-time data exchange with PLCs and supervisory systems

User-Friendly Design

Status Indicators: Per-channel LEDs display output status (on/off) and power health, simplifying troubleshooting
Flexible Installation: Mounts on DIN rails or panels using integrated latches, with removable terminal blocks for quick wiring
