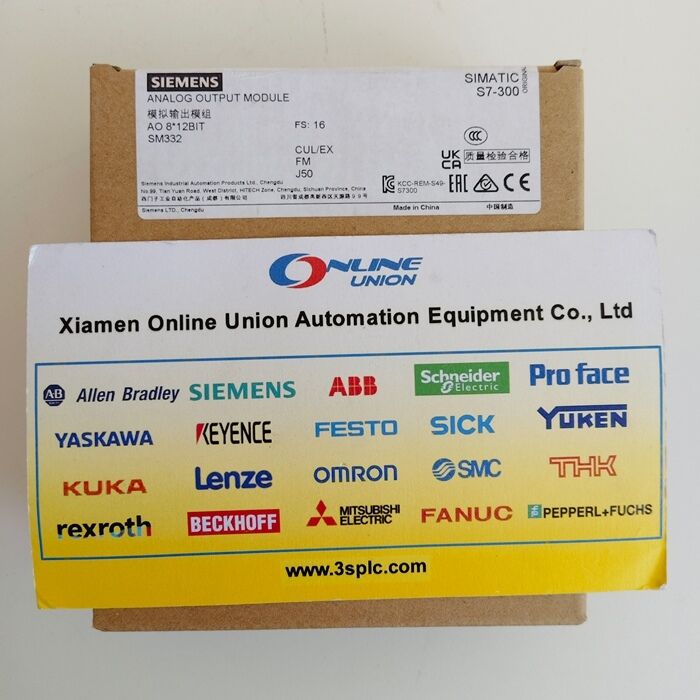

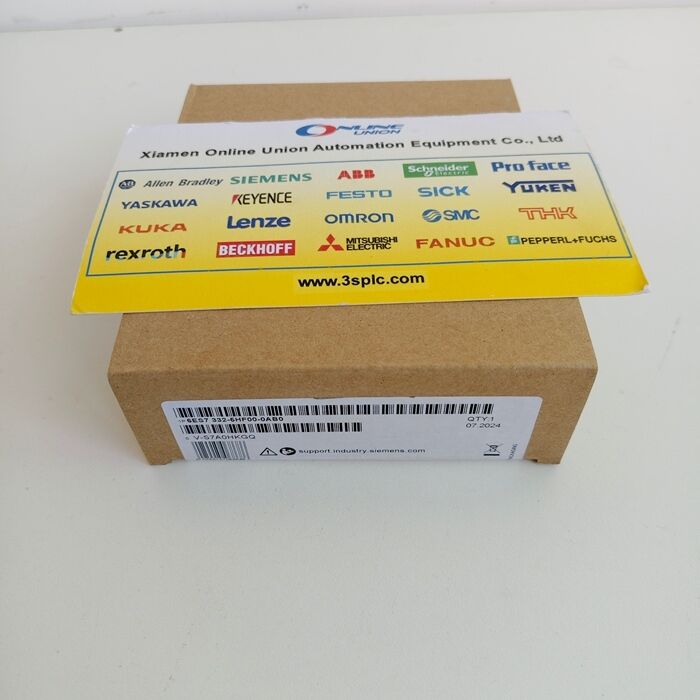

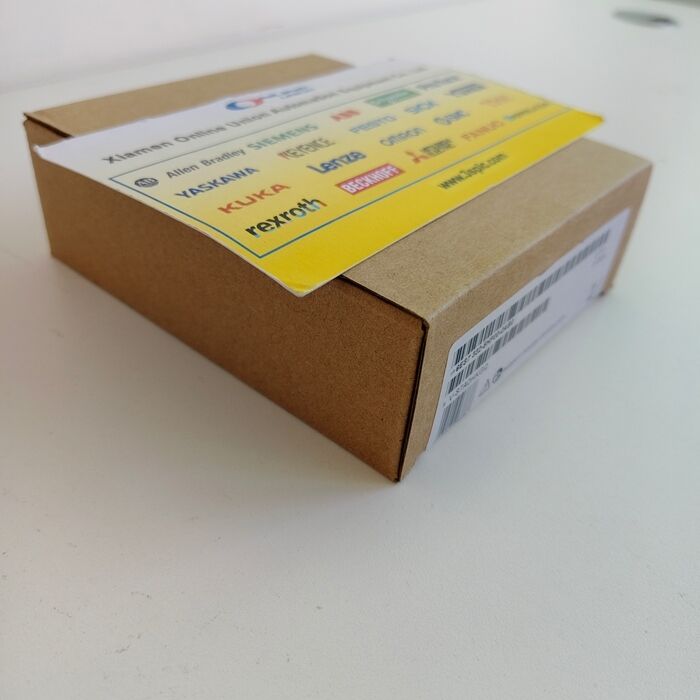

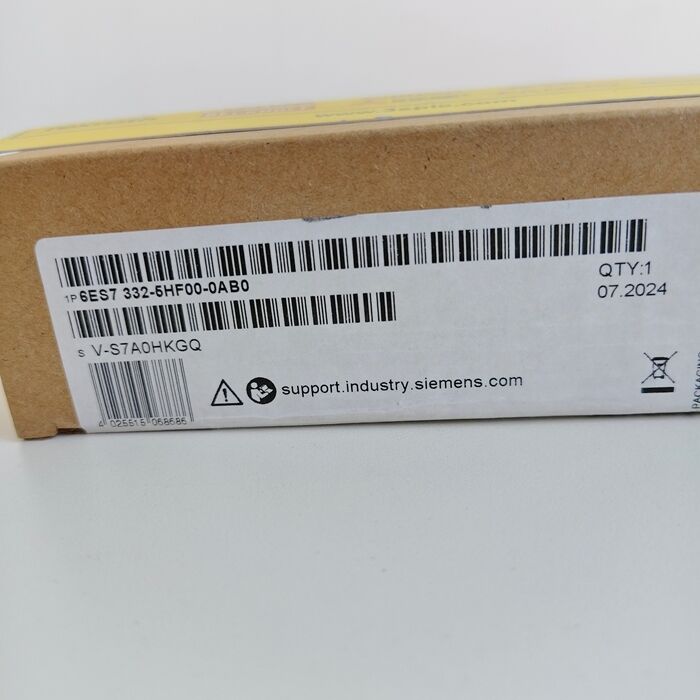

Name: 6ES7332-5HF00-0AB0 Siemens SIMATIC S7 300 SM332 Analog Output Module
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 6ES7332-5HF00-0AB0
Price: 50.00 USD
Availability: InStock

Home > Products > SIEMENS PLC Module >

6ES7332-5HF00-0AB0 Siemens SIMATIC S7 300 SM332 Analog Output Module

Siemens S7 300 analog output module

SM332 analog output module with warranty

SIEMENS PLC analog output module

Place of Origin:

GERMANY

Brand Name:

SIEMENS

Model Number:

6ES7332-5HF00-0AB0

Request A Quote

Product Details

Product Type:

SIMATIC S7-300 Analog Output Module (SM332)

Channels:

8 Analog Outputs (12-bit Resolution)

Output Types:

Voltage (0–10V) Or Current (0–20mA), Per-channel Configurable

Diagnostic Function:

Red LED For Fault Indication; Diagnostic Interrupt To CPU

Isolation:

Galvanic Isolation Between Channels And Backplane (optocouplers)

Power Supply:

DC 24V (L+ Terminal) + DC 5V (backplane Bus)

Typical Power Loss:

6W (under Full Load)

Communication:

Backplane Bus (MPI/DP Compatible)

Highlight:

Siemens S7 300 analog output module

SM332 analog output module with warranty

SIEMENS PLC analog output module

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

6SL3300-1AE32-5AA0 Siemens Sinamics Braking Module

Get Best Price

6SL3120-1TE32-0AA4 Siemens SINAMICS S120 Book Size Single Axis Drive Module

Get Best Price

6SL3120-1TE28-5AA3 Siemens SINAMICS S120 Book Size Single Axis Drive Module

Get Best Price

6ES7332-5HF00-0AB0 Siemens SIMATIC S7 300 SM332 Analog Output Module

Get Best Price

Contact Now

Product Description

Siemens SIMATIC S7-300 SM332 Analog Output Module

The Siemens 6ES7332-5HF00-0AB0 is an 8-channel analog output module (SM332) from the SIMATIC S7-300 series, designed for industrial automation systems requiring precise analog signal generation. As part of Siemens' modular S7-300 PLC ecosystem, this module converts digital control signals into standardized analog outputs (voltage/current) to drive actuators, valves, or other field devices, enabling closed-loop control and process regulation.

Key Features

8-Channel Analog Outputs: Supports 8 independent channels with 12-bit resolution for high-precision signal generation
Flexible Output Types: Configurable for voltage (0-10V) or current (0-20mA) outputs, adaptable to diverse actuator requirements
Diagnostic & Protection: Integrated diagnostic interrupts (red LED fault indication) and short-circuit protection for enhanced reliability
Galvanic Isolation: Internal optocouplers isolate the module from the PLC backplane, reducing electrical interference
Wide Application Range: Compatible with S7-300 PLCs and suitable for process control, motion control, and distributed I/O systems

Applications

Process Control: Regulating flow, pressure, or temperature via analog signals to valves or actuators
Motion Control: Driving analog-controlled servo motors or frequency converters (e.g., in packaging, material handling)
Distributed I/O Systems: Integrating with PROFIBUS-DP or PROFINET networks for decentralized control
Test & Measurement: Generating calibration signals or simulating sensor inputs for system testing

Technical Specifications

Model Number

6ES7332-5HF00-0AB0

Channels

8 independent analog outputs

Resolution

12-bit

Output Types

Voltage (0-10V) or Current (0-20mA)

Compatibility

S7-300 PLC series (CPU315, CPU317, etc.)

Network Support

PROFIBUS-DP, PROFINET

Cable Requirements

Shielded cables (max. 200m length)

Integration & Compatibility

Designed for S7-300 PLCs (e.g., CPU315, CPU317) and supports mixed rack configurations (up to 32 modules per rack). Configured via Siemens STEP 7 software (TIA Portal or classic STEP 7), with parameterization for output ranges and diagnostics. Supports 2-wire or 4-wire connections based on isolation needs.
