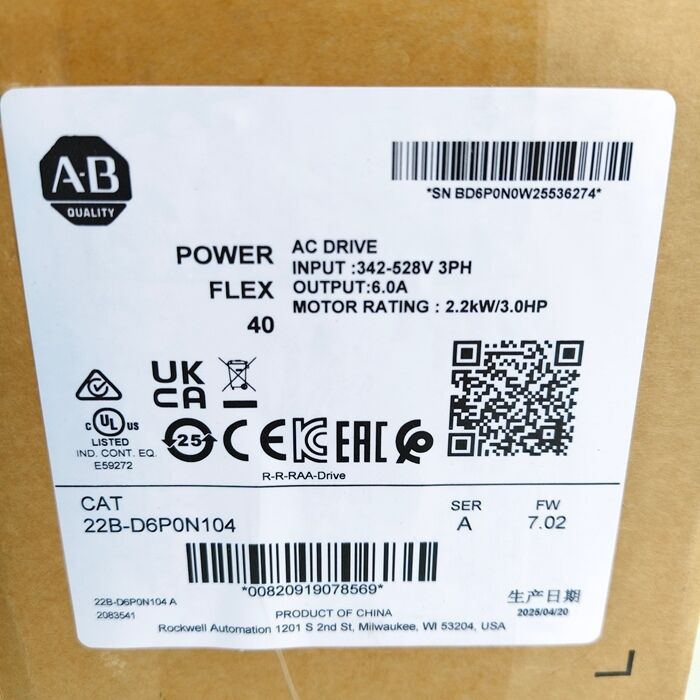

Name: 22B-D6P0N104 Allen-Bradley PowerFlex 40 AC Drive
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 22B-D6P0N104
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

22B-D6P0N104 Allen-Bradley PowerFlex 40 AC Drive

Allen-Bradley PowerFlex 40 AC drive

Allen-Bradley PLC drive

PowerFlex 40 AC motor drive

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

22B-D6P0N104

Request A Quote

Product Details

Product Series:

PowerFlex 40

Power Rating:

2.2 KW (3 HP)

Input Voltage:

480V AC (3-Phase)

Input Frequency:

50/60 Hz

Output Voltage:

0 To 100% Of Input Voltage

Output Current:

12 A (at 400V AC)

Control Mode:

Sensorless Vector, V/F, Flux Vector

Power Factor:

0.98

Highlight:

Allen-Bradley PowerFlex 40 AC drive

Allen-Bradley PLC drive

PowerFlex 40 AC motor drive

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

440R-M23147 Allen-Bradley Guardmaster MSR138DP Safety Relay

Get Best Price

25B-D017N104 Allen-Bradley PowerFlex 525 AC Drive

Get Best Price

5069-L340ERMS2 Allen-Bradley Compact GuardLogix 5380 Safety Controller

Get Best Price

1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module

Get Best Price

Contact Now

Product Description

Allen-Bradley PowerFlex 40 AC Drive - 22B-D6P0N104

The Allen-Bradley 22B-D6P0N104 is a compact and versatile AC drive from the PowerFlex 40 series by Rockwell Automation. Engineered for diverse industrial applications, this drive delivers optimal performance, flexibility, and ease of use for both basic machine control and complex system integration. It ensures precise motor control, enhanced productivity, and improved energy efficiency in automated processes.

Key Product Highlights:
• Series: PowerFlex 40
• Power Rating: 2.2 kW (3 HP)
• Control Method: Sensorless Vector Control & V/F Control
• Voltage Class: 480V AC (3-Phase)
• Key Features: Integrated keypad, flexible communications, built-in safety functions

Key Features & Benefits

Advanced Motor Control

Sensorless Vector Control: Delivers high torque at low speeds for improved machine performance without encoder requirements
V/F Control: Provides reliable and stable control for various load types
Auto-Tuning: Automatically determines motor parameters for optimal performance

Enhanced Functionality

Integrated PID Controller: Enables closed-loop control for process variables without external hardware
StepLogic: Programs up to 16 speed steps and 8 dwell times for multi-speed applications
Built-in Brake IGBT: Internal brake transistor for dynamic braking, reducing external components
Pre-set Speeds & Timers: Programmable preset speeds, timers, and counters to simplify control logic

User-Friendly & Compact Design

Integral Keypad & LED Display: Enables out-of-the-box operation for startup, programming, and monitoring
Flange Mounting: Compact footprint (approx. 240mm x 420mm x 90mm) saves control panel space
Conformal Coating: Protects internal circuitry in harsh environments

Flexible Communications

Supports industrial networks via optional plug-in modules: EtherNet/IP, DeviceNet, ControlNet, Profibus-DP, and Modbus RTU
Built-in RS485 port for basic serial communication

Safety & Protection

Safe Torque Off (STO): Built-in safety function (SIL 2, PL d) for emergency motor shutdown
Comprehensive Protection: Includes overcurrent, overvoltage, undervoltage, overload, overtemperature, and short-circuit protection

Technical Specifications

Parameter	Specification
Model Number	22B-D6P0N104
Product Series	PowerFlex 40
Power Rating	2.2 kW (3 HP)
Input Voltage	480V AC (3-Phase)
Input Frequency	50/60 Hz
Output Voltage	0 to 100% of input voltage
Output Current	12 A (at 400V AC)
Control Mode	Sensorless Vector, V/F, Flux Vector
Power Factor	0.98
User Interface	Integral Keypad, 6-segment LED Display
Communication Ports	RS-485 (Modbus RTU), Optional Modules for Major Networks
Braking Capability	Internal Brake IGBT (Dynamic Braking)
Safety Function	Safe Torque Off (STO) - Category 3, PLe / SIL 3
Protection Rating	IP20 / NEMA 1 (Type 1)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Dimensions (H x W x D)	Approx. 240 mm x 420 mm x 90 mm
Weight	Approx. 4.72 kg
Certifications	UL, cUL, CE, C-Tick, CCC

Typical Applications

Material Handling: Conveyors, sorters, and hoists
Fluid Control: Pumps and fans with energy-saving PID control
Packaging Machinery: Wrappers, fillers, and labeling machines
Machine Tools: Spindles, mixers, and agitators
General Automation: Applications requiring precise speed and torque control
