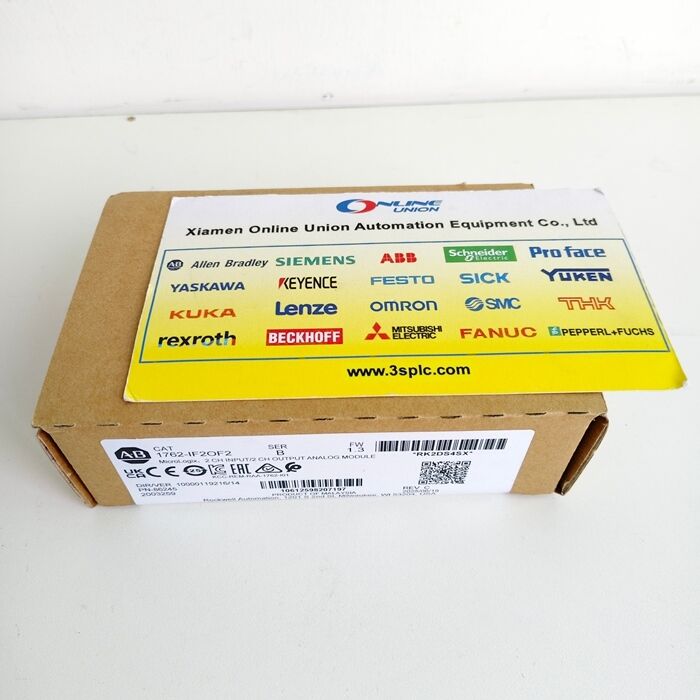

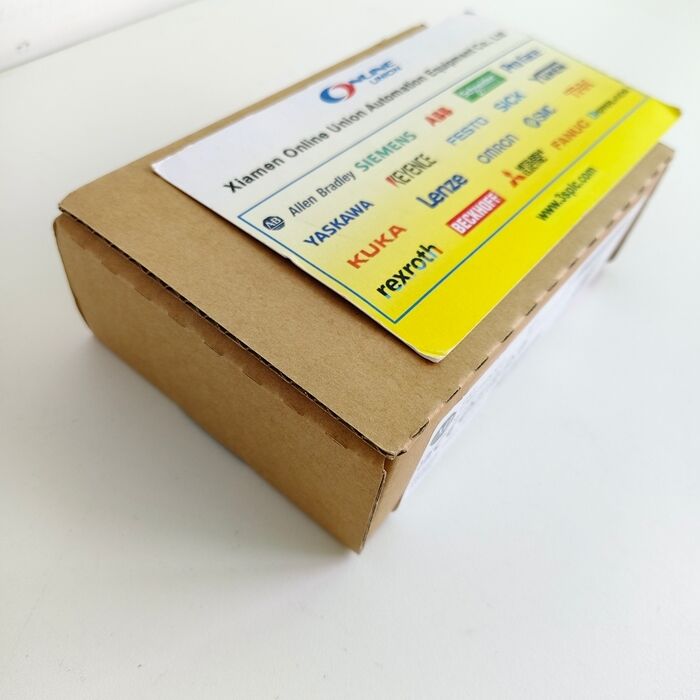

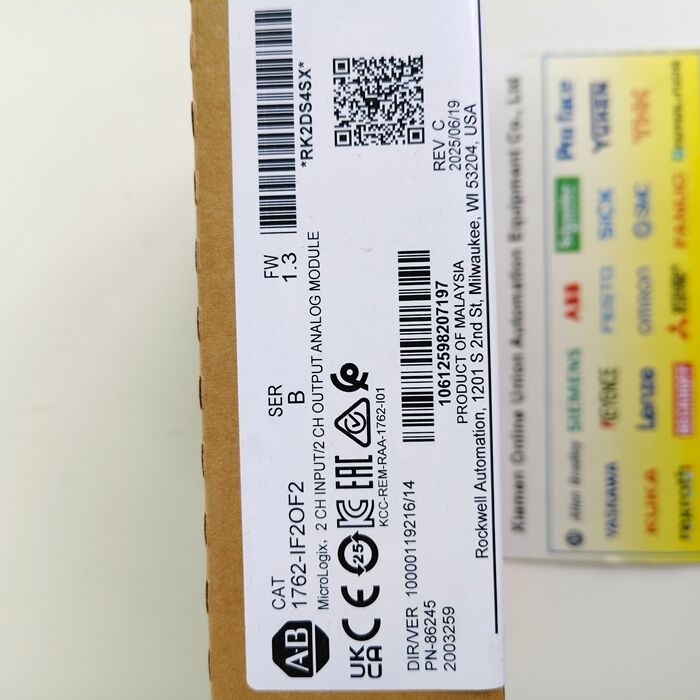

1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module

1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module

Allen Bradley MicroLogix analog module

MicroLogix PLC analog combination module

Allen Bradley IF2OF2 analog module

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1762-IF2OF2

Contact Us
Request A Quote
1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module 1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module 1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module 1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module
Product Details
Product Series:
MicroLogix 1100 / 1200 / 1400
Module Type:
Analog Combination I/O Module
I/O Channels:
4 Total (2 Inputs, 2 Outputs)
Repeatability:
±0.12% (typical)
Isolation:
Channel-to-channel And Channel-to-bus Isolated
Power Supply:
Derived From The Controller Via The Modular Bus (5V DC)
Mounting:
DIN Rail Or Direct Mount Adjacent To A MicroLogix Controller
Communication:
Proprietary Modular Bus (connects To Controller Backplane)
Highlight:

Allen Bradley MicroLogix analog module

,

MicroLogix PLC analog combination module

,

Allen Bradley IF2OF2 analog module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1-99$
Packaging Details
Brand New Original
Delivery Time
in stock / 1-3 work days
Payment Terms
T/T
Supply Ability
999
RELATED PRODUCTS
Good price 440R-M23147 Allen-Bradley Guardmaster MSR138DP Safety Relay online

440R-M23147 Allen-Bradley Guardmaster MSR138DP Safety Relay

Get Best Price
Good price 25B-D017N104 Allen-Bradley PowerFlex 525 AC Drive online

25B-D017N104 Allen-Bradley PowerFlex 525 AC Drive

Get Best Price
Good price 5069-L340ERMS2 Allen-Bradley Compact GuardLogix 5380 Safety Controller online

5069-L340ERMS2 Allen-Bradley Compact GuardLogix 5380 Safety Controller

Get Best Price
Good price 1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module online

1762-IF2OF2 Allen Bradley MicroLogix Analog Combination Module

Get Best Price
CONTACT US
Contact Now
Product Description
Allen Bradley MicroLogix Analog Combination Module
The Allen-Bradley 1762-IF2OF2 is a versatile and compact Analog Combination I/O Module from Rockwell Automation's MicroLogix series. Designed for small to medium-scale automation systems, this module provides a cost-effective solution for expanding analog I/O capabilities of compatible MicroLogix controllers.
Key Product Highlights
  • Series: MicroLogix 1100/1200/1400
  • Type: 4-Channel Analog Combination Module (2 Inputs, 2 Outputs)
  • Function: Expands controller capabilities with analog signal processing
  • Key Feature: High-resolution 12-bit A/D and D/A conversion with flexible signal configuration
Key Features & Benefits
Flexible Analog I/O Configuration
  • 2 Analog Inputs: Supports differential voltage (0-10 VDC) and current (4-20 mA) signals with excellent noise immunity
  • 2 Analog Outputs: Supports single-ended voltage (0-10 VDC) and current (4-20 mA) signals for device control
  • User-Configurable: Each channel independently configurable for voltage or current operation
High Performance & Accuracy
  • 12-Bit Resolution: 4096 discrete steps for precise control and high-fidelity signal representation
  • Excellent Repeatability: ±0.12% repeatability ensures consistent performance
  • Wide Signal Range: Full-scale ranges of 0 to 10.5 VDC and 0 to 21 mA with over-range capability
Seamless Integration & Usability
  • Modular Bus Connection: Direct connection to MicroLogix controllers via ribbon cable
  • Compact Design: Space-saving "comb" I/O family footprint
  • Easy Programming: Fully integrated with RSLogix 500 software
Robustness & Reliability
  • Industrial Grade: Designed for harsh industrial environments
  • Conformal Coating: Protection against moisture, dust, and corrosive gases
Technical Specifications
Model Number 1762-IF2OF2
Product Series MicroLogix 1100 / 1200 / 1400
Module Type Analog Combination I/O Module
I/O Channels 4 Total (2 Inputs, 2 Outputs)
Analog Inputs (2 Channels) Type: Differential
Voltage: 0-10 VDC (Full scale: 0-10.5 V)
Current: 4-20 mA (Full scale: 0-21 mA)
Resolution: 12-bit
Analog Outputs (2 Channels) Type: Single-Ended
Voltage: 0-10 VDC (Full scale: 0-10.5 V)
Current: 4-20 mA (Full scale: 0-21 mA)
Resolution: 12-bit
Repeatability ±0.12% (typical)
Isolation Channel-to-channel and channel-to-bus isolated
Power Supply Derived from controller via modular bus (5V DC)
Mounting DIN rail or direct mount adjacent to MicroLogix controller
Programming Software RSLogix 500 (or later versions with MicroLogix support)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Protection Rating IP20 / NEMA 1 (Type 1)
Dimensions (H x W x D) Approx. 110 mm x 87 mm x 62 mm
Weight Approx. 0.25 kg
Certifications UL, cUL, CE, C-Tick, CCC
Typical Applications
  • Process Control: Regulating temperature, pressure, and flow in small-scale systems
  • Pump and Fan Control: Speed control of pumps and fans via VFD with feedback monitoring
  • Tank Level Monitoring: Reading level transmitters and controlling fill valves
  • Material Handling: Controlling conveyor motor speeds via analog output
  • Test & Measurement Systems: Acquiring sensor data and providing control signals
  • Building Automation: Controlling HVAC dampers, heating elements, and lighting systems
Related Products & Series
Same Series (1762)
  • Digital I/O: 1762-IQ16, 1762-OW16, 1762-IR4
  • Analog I/O: 1762-IF4, 1762-OF4, 1762-IT4
  • Communication: 1762-NET-ENI (Ethernet/IP adapter)
Compatible Controllers
  • MicroLogix 1100 (1761, 1763-L16 series)
  • MicroLogix 1200 (1762-L24 series)
  • MicroLogix 1400 (1762-L18, 1762-L24BXB series)
Newer Generation
For enhanced performance and EtherNet/IP connectivity, consider CompactLogix 5000 series (1769-IF4, 1769-OF4) and Compact 5000 series (5069-IF4, 5069-OF4).
