Brand Name:
OMRON
Model Number:

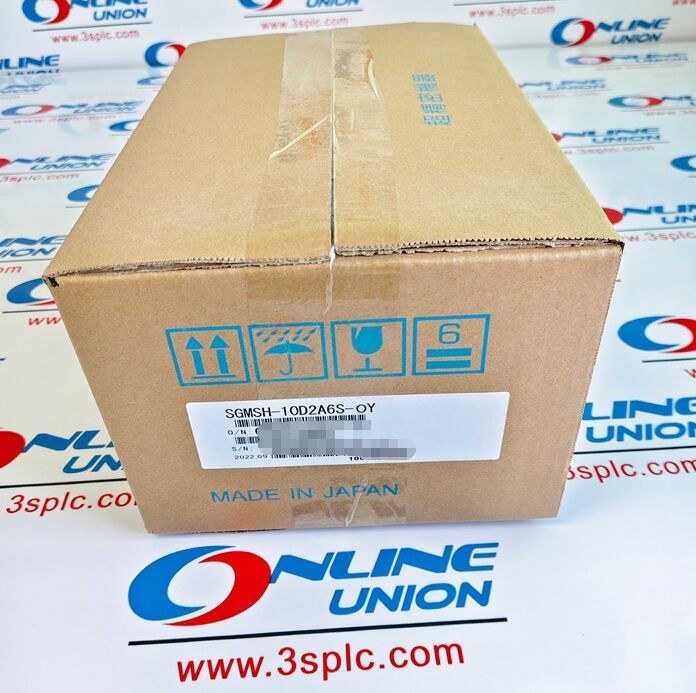

SGMSH-10D2A6S-OY

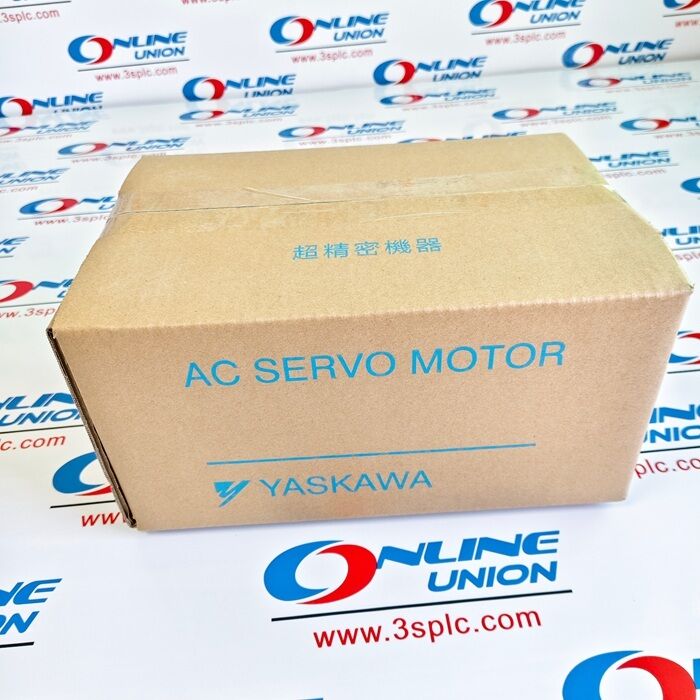

The OMRON SGMSH-10D2A6S-OY is a high-performance 1.0 kW AC servo motor from the Sigma-II (SGMSH) series, manufactured by Yaskawa. Designed for medium-inertia applications, it delivers a rated speed of 3000 RPM and a continuous torque of 3.18 N·m. Equipped with a 17-bit absolute encoder and a straight shaft with key and oil seal, this motor provides high-precision feedback and robust durability. It is ideally suited for demanding industrial automation tasks such as CNC machinery, semiconductor manufacturing, packaging equipment, and high-speed feed axes.
High Power Rate & Responsiveness: Optimized for applications requiring rapid acceleration/deceleration with a superior power change rate.
High-Resolution Feedback: Integrated 17-bit absolute encoder (131,072 pulses/rev) ensures precise positioning and eliminates the need for homing on power-up.
Medium Inertia Design: Balances high torque output with manageable inertia, making it versatile for various load types.
Rugged Construction: Features an IP67-rated fully enclosed self-cooling design (excluding shaft opening), resistant to dust and water jets, suitable for harsh environments.
Durable Shaft Configuration: Straight shaft with keyway and tap hole, plus a shaft oil seal for extended life in contaminated environments.
Global Compatibility: Compliant with major international standards (CE, UL, CSA, TÜV), ensuring seamless integration worldwide.
Thermal Reliability: Class F insulation and efficient cooling allow for continuous duty operation in ambient temperatures from 0°C to 40°C.
Model: SGMSH-10D2A6S-OY (Sigma-II Series)
Rated Output (Power): 1.0 kW (1.3 HP)
Rated Speed: 3000 min⁻¹ (rpm)
Maximum Speed: 5000 min⁻¹ (rpm)
Rated Torque: 3.18 N·m (approx. 28.1 lb-in)
Peak Torque: 9.54 N·m (300% for 3 seconds)
Rated Current: 5.7 A (Arms)
Power Supply Voltage: 3-Phase 200 VAC (Compatible with 400V drives via specific configurations)
Encoder Type: 17-bit Absolute Serial Encoder
Shaft Type: Straight shaft with key and tap hole
Oil Seal: Equipped (S suffix)
Protection Class: IP67 (Totally enclosed, self-cooled)
Insulation Class: F
Mounting Style: Flange mount
Weight: Approx. 5.5 kg (varies slightly with options)
