| Place of Origin: | Japan |
| ชื่อแบรนด์: | MITSUBISHI |
| Model Number: | HG-KR43B |
| Minimum Order Quantity: | 1 |
|---|---|
| ราคา: | $99 |
| Delivery Time: | In stock/1-3days |
| Payment Terms: | T/T |
| Supply Ability: | 10 |
| Series: | MELSERVO-J4 | Type: | HG-KR |
|---|---|---|---|
| Power Supply (V): | 200 | Rated Capacity (kW): | 0,4 |
| Inertia: | LOW INERTIA | Rated Torque (Nm): | 1,3 |
| Maximum Torque (Nm): | 4,5 | Rated Speed (rpm): | 3.000 |
| Inertia (kg*cm2): | 0,393 | Brake: | YES |
| Shaft Type: | STRAIGHT SHAFT | Current Type: | AC |
| Encoder Resolution (p/rev): | 4.194.304 | Maximum Speed (rpm): | 6.000 |
| Protection Class: | IP65 | Encoder Type: | 22-BIT |

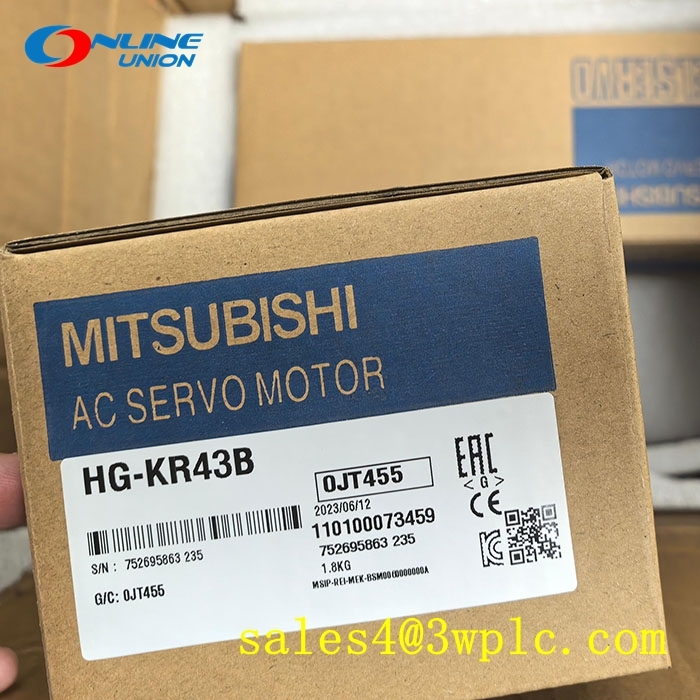

MITSUBISHI HG-KR43B Servomotor HG Series, Power 400 W
Servomotor HG Series, Power 400 W; Torque 1.3 Nm, Max. Torque 4.5 Nm, Brake.
The MITSUBISHI HG-KR43B is a low-inertia, small-capacity AC servo motor from the MR-J4 series, designed for high-precision industrial automation applications. It features a compact design, IP65 protection rating, and advanced control functions, making it suitable for scenarios requiring rapid acceleration/deceleration and precise positioning, such as insertion machines, label printers, and small robots.
Technical Specifications
Electrical Ratings
Rated Power: 400 W (continuous output)
Rated Voltage: AC 200 V (compatible with AC 110/220 V or DC 24/12 V input)
Rated Current: 2.6 A (Maximum Current: 9.1 A)
Rated Torque: 1.3 N·m (Maximum Torque: 4.5 N·m, Instantaneous Allowable Speed: 6,900 r/min)
Speed Range: Rated Speed 3,000 r/min, Maximum Speed 6,000 r/min
Encoder Resolution: 22-bit absolute/incremental hybrid encoder (4,194,304 pulses/rev)
Mechanical Specifications
Protection Class: IP65 (Totally enclosed fan-cooled, resistant to oil mist/dust)
Moment of Inertia: 0.371 × 10⁻⁴ kg·m² (Low-inertia design for high-frequency start/stop)
Recommended Load Inertia Ratio: ≤25 times (consult for higher ratios)
Shaft Load Capacity: Radial 245 N, Thrust 98 N
Weight: 1.4 kg (standard), 1.8 kg (with electromagnetic brake)
