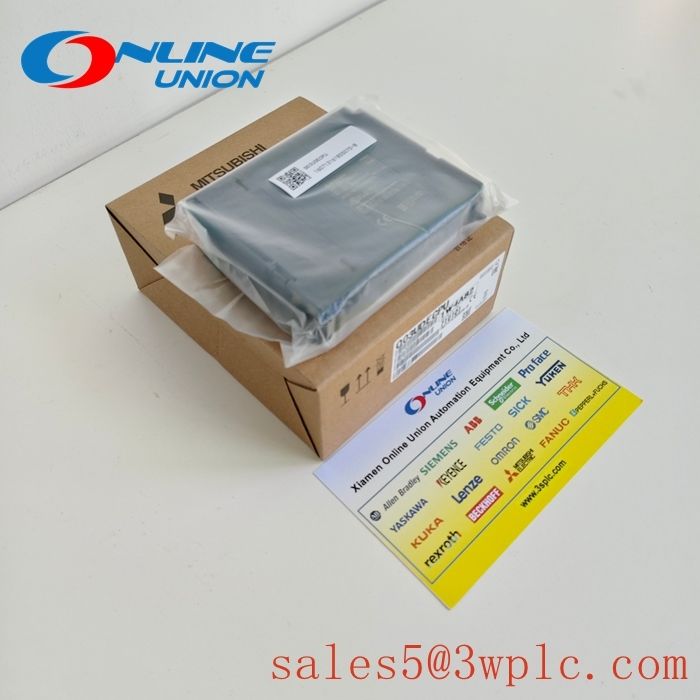

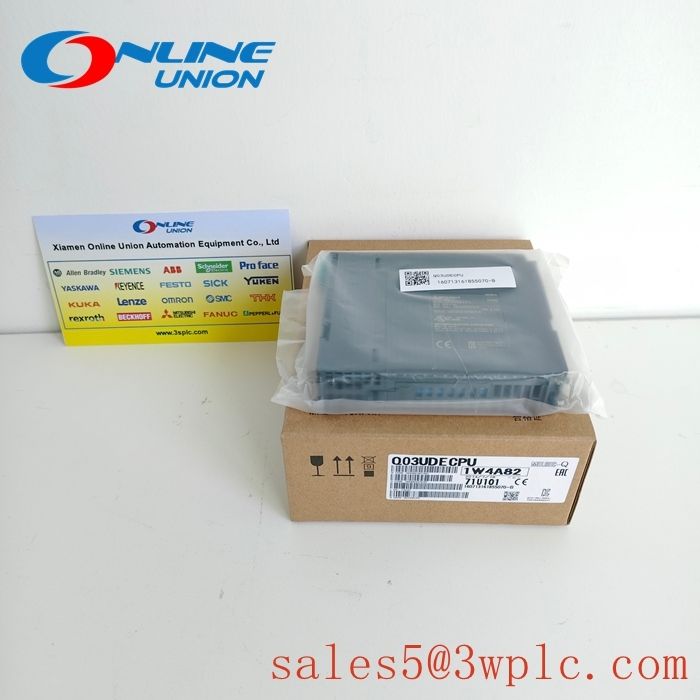

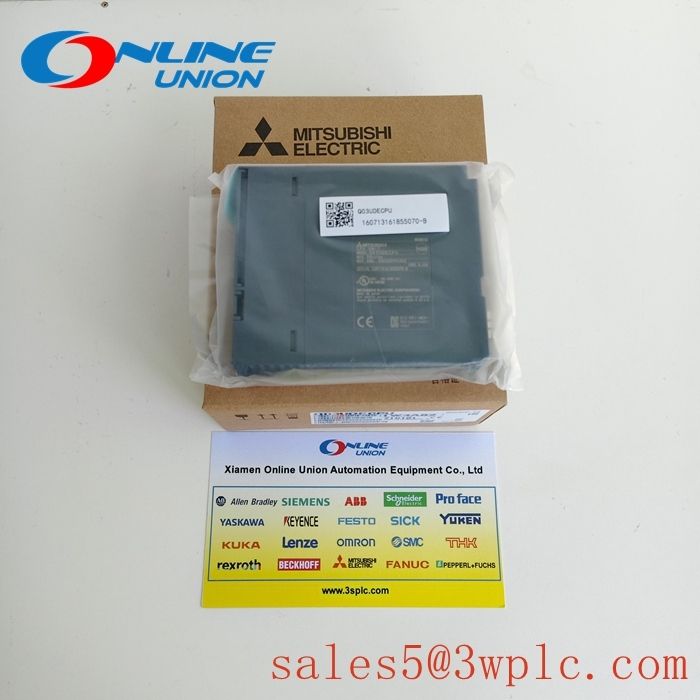

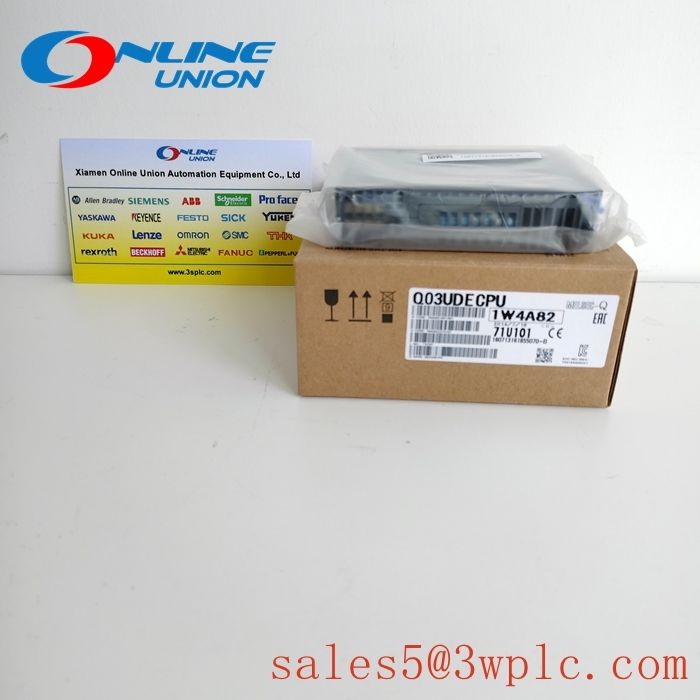

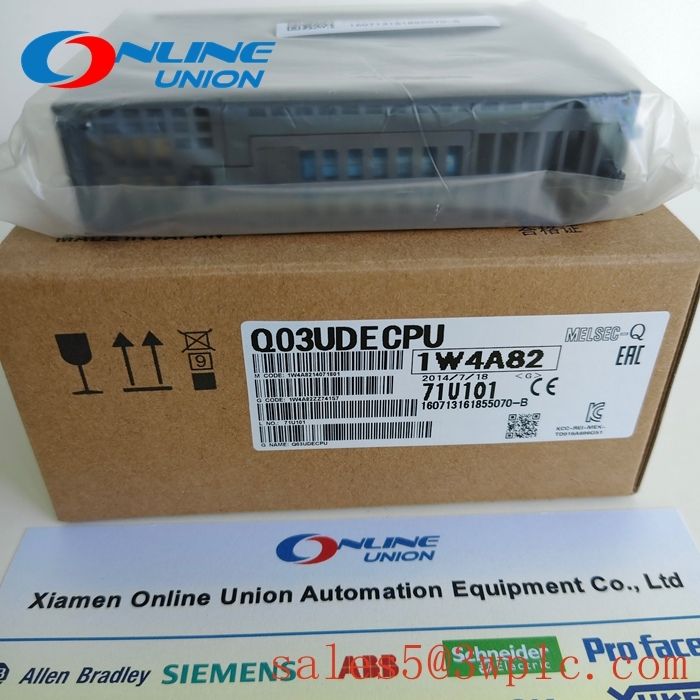

Q03UDECPU 217899 Mitsubishi PLC Q Series iQ CPU module

Mitsubishi Q03UDECPU 217899 PLC Q Series iQ CPU module

Product Description:

The Mitsubishi Q03UDECPU is a high-performance, process-centric programmable logic controller (PLC) CPU module from the MELSEC-Q series. This advanced module is engineered for complex and large-scale automation systems that require robust control, extensive data processing, and seamless integration of multiple field networks. A standout feature of the Q03UDECPU is its built-in support for two key industrial network protocols: Ethernet for general data communication and CC-Link IE Field Basic for high-speed, deterministic motion and process control. This integrated multi-network capability eliminates the need for additional communication modules in many applications, simplifying system architecture and reducing costs.

Designed for demanding applications in sectors such as automotive manufacturing, packaging, and material handling, this CPU offers substantial program and device memory capacity to handle sophisticated control algorithms and large data sets. It supports structured programming and offers powerful instructions for advanced logic, arithmetic, and data processing tasks. The module also features a built-in SD memory card slot for data logging, program backup, and firmware updates, enhancing system maintenance and data management capabilities. Its robust design ensures reliable operation in harsh industrial environments, making it a cornerstone for building modern, connected, and intelligent automation solutions.

Technical Specifications:

The Mitsubishi Q03UDECPU is a multi-network CPU module with a program capacity of 60 K steps and a device memory of 192 KB. It operates with a high-speed processing performance of 34 ns per basic instruction, enabling rapid execution of complex control logic. The module is equipped with two integrated communication ports: a 10BASE-T/100BASE-TX Ethernet port for connecting to HMIs, SCADA systems, and higher-level networks, and a CC-Link IE Field Basic port for building high-speed, motion-synchronized networks with remote I/O and drives.

It supports a maximum of 4,096 I/O points, allowing it to manage large and distributed systems. The CPU features an built-in SD memory card slot, compatible with cards up to 2 GB, which is used for program storage, data logging, and booting applications. It operates on a 5V DC power supply provided by the base unit's power supply module. The operating ambient temperature range is from 0°C to 55°C, and it is designed for use in environments with a relative humidity of 5% to 95% without condensing. The module complies with international standards for safety and EMC, ensuring reliable performance in industrial settings.
