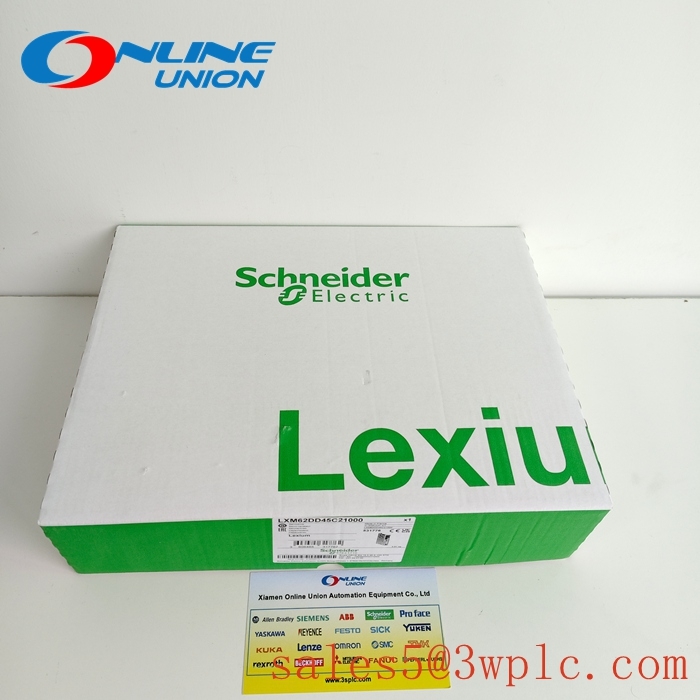

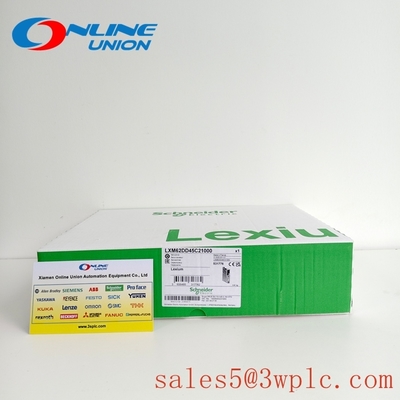

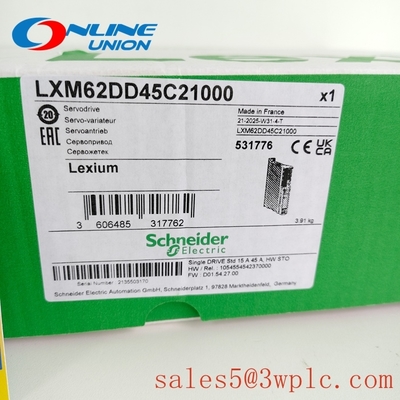

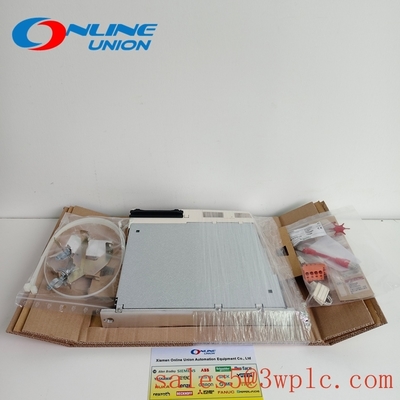

LXM62DD45C21000 SCHNEIDER Lexium 62 Single Drive

SCHNEIDER LXM62DD45C21000 Lexium 62 Single Drive

Product Description

The SCHNEIDER LXM62DD45C21000 is a Lexium 62 integrated stepper drive and motor system, designed as a compact and highly efficient all-in-one solution for precise motion control. This model merges a NEMA 23 frame stepper motor with an integrated drive and a built-in motion controller into a single, streamlined unit. This integration drastically reduces the complexity of your control cabinet, minimizes wiring, and accelerates both installation and commissioning times.

Part of Schneider Electric's advanced Lexium 62 series, this device delivers performance that bridges the gap between traditional steppers and more expensive servo systems. It operates in a closed-loop configuration, thanks to a built-in encoder, which provides superior accuracy, higher torque at speed, and the critical ability to detect and recover from position errors (step loss). It is ideally suited for a vast array of automated applications requiring precise positioning, such as packaging machinery, pick-and-place systems, conveyor indexing, and automated assembly equipment. Configuration and tuning are simplified through the user-friendly SoMove software.

.

Technical Specifications:

The SCHNEIDER LXM62DD45C21000 is an integrated closed-loop stepper system. The motor has a NEMA 23 frame size and delivers a holding torque of 1.0 Nm. The integrated drive is designed for a single-phase 24-48 V DC power supply, making it an excellent choice for low-voltage and mobile applications or for integration into systems with existing DC bus infrastructures. It offers a rated output current of 4.5 A RMS.

A key feature is its high-resolution encoder with 16,000 counts per revolution, which enables the precise closed-loop control that ensures reliability and accuracy. For connectivity, it is equipped with a CANopen (CANlift) fieldbus interface, allowing for seamless and streamlined integration into a multi-axis distributed control network. The unit also includes integrated I/O, specifically 3 digital inputs and 2 digital outputs, for direct connection to sensors, switches, and actuators. The motor is rated at IP65 for protection against dust and low-pressure water jets, while the drive section is rated at IP20, indicating it should be installed in a protected enclosure.
