Name: HF-KN13 Mitsubishi Electric MR-JE Series Low Inertia AC Servo Motor
Brand: Xiamen Online Union Technology Co., Ltd
SKU: HF-KN13
Price: 50.00 USD
Availability: InStock

Home > Products > Mitsubishi Module >

HF-KN13 Mitsubishi Electric MR-JE Series Low Inertia AC Servo Motor

Mitsubishi Electric low inertia servo motor

MR-JE series AC servo motor

Mitsubishi servo motor with warranty

Place of Origin:

Japan

Brand Name:

MITSUBISHI

Model Number:

HF-KN13

Request A Quote

Product Details

Product Series:

MR-JE Series (HF-KN Series)

Motor Type:

AC Servo Motor (Low Inertia)

Rated Output Power:

100 W (0.1 KW)

Rated Speed:

3000 R/min

Max. Speed:

4500 - 5175 R/min

Rated Torque:

0.32 N·m

Maximum Torque:

0.95 N·m (approx. 3x Rated)

Encoder Resolution:

17-bit (131,072 Pulses/rev)

Protection Rating:

IP65 (Motor Body & Encoder, Oil Seal Included)

Insulation Class:

Class B (130°C)

Highlight:

Mitsubishi Electric low inertia servo motor

MR-JE series AC servo motor

Mitsubishi servo motor with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

ZKB Series Mitsubishi Magnetic Powder Clutch And Brake Tension Control

Get Best Price

FR-A740-00023-EC Mitsubishi Electric FR-A700 Series High Performance Vector Inverter

Get Best Price

HG-KR43B MITSUBISHI Servomotor HG Series, Power 400 W

Get Best Price

QX10 129581 MITSUBISHI PLC Q Series Input Module

Get Best Price

Contact Now

Product Description

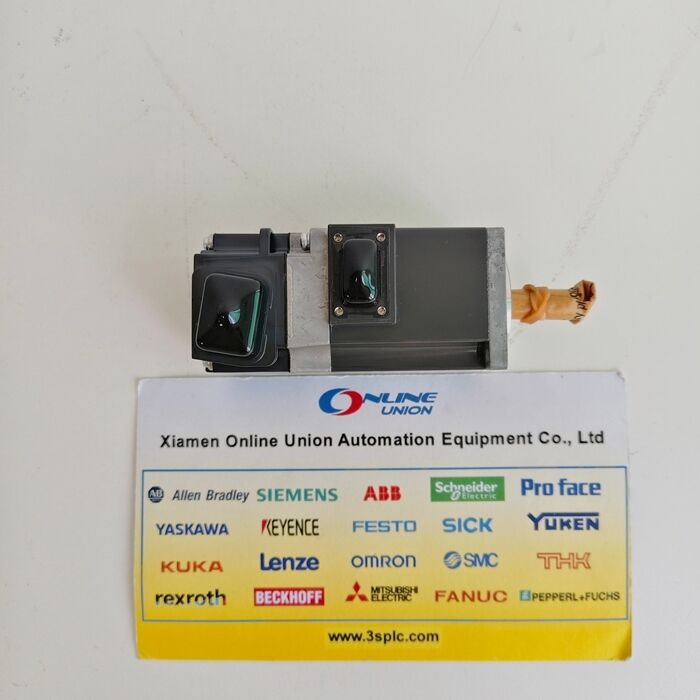

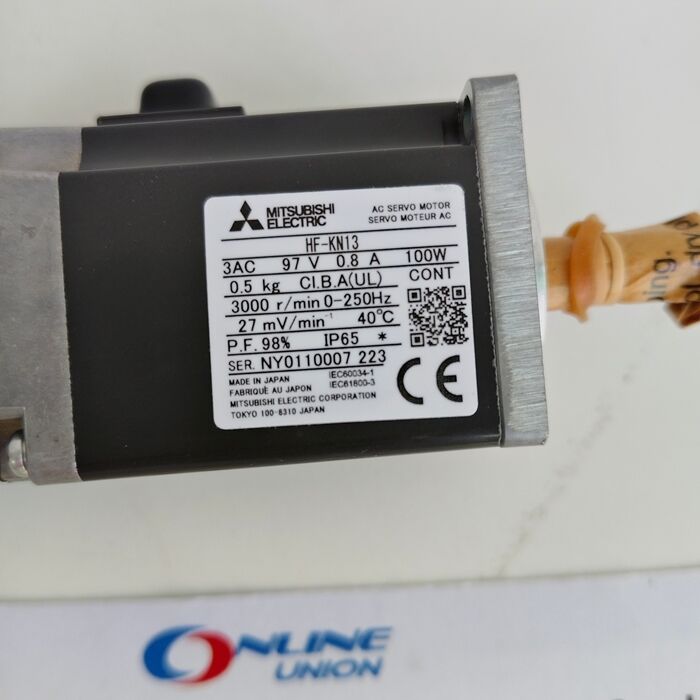

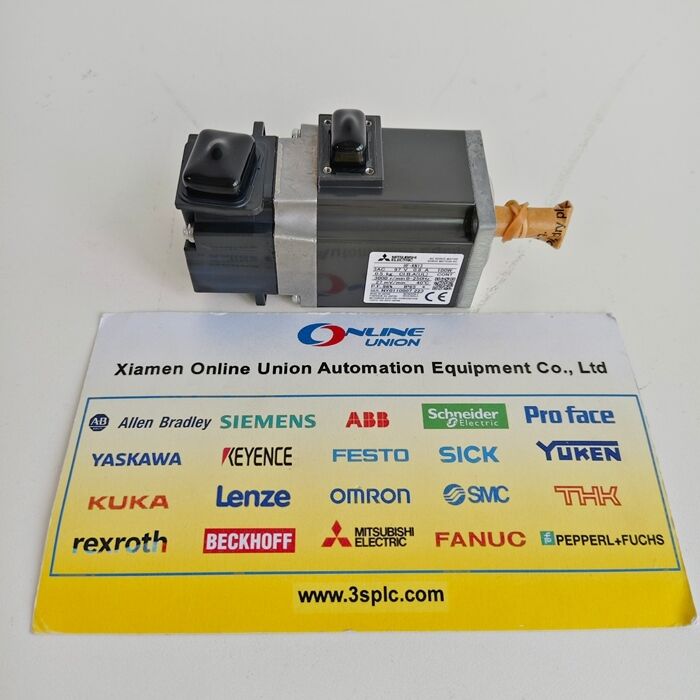

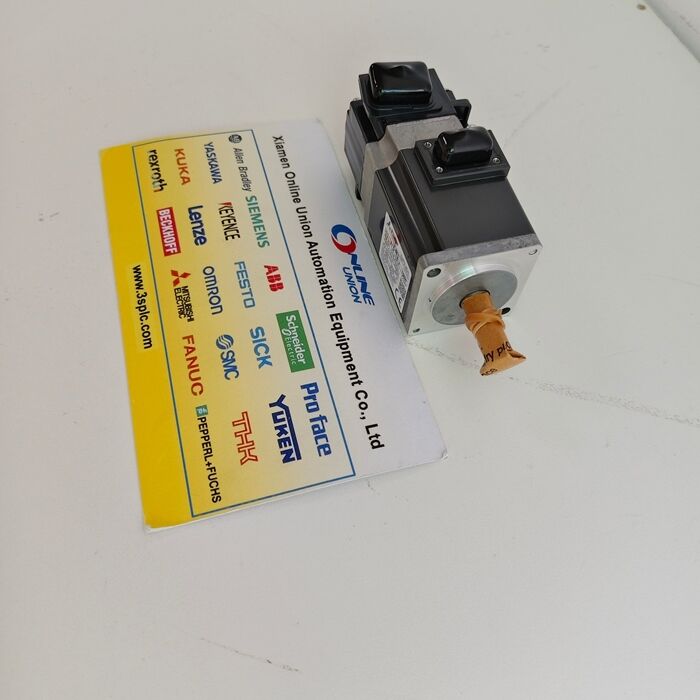

Mitsubishi Electric HF-KN13 MR-JE Series Low Inertia AC Servo Motor

The Mitsubishi Electric HF-KN13 is a high-precision, low-inertia AC servo motor belonging to the advanced MR-JE Series. Designed as a cost-effective yet high-performance successor to the popular MR-E series, the HF-KN13 delivers exceptional responsiveness and positioning accuracy in a compact form factor. With a rated output of 100W, this motor is engineered for applications requiring rapid start-stop cycles, high-speed operation, and precise torque control.

The "KN" designation identifies this as a low-inertia, small-capacity motor (3000 r/min rated speed), making it ideal for driving lightweight loads with maximum efficiency. It features a high-resolution 17-bit encoder (131,072 pulses/rev) and an IP65 protection rating (for the motor body and encoder), ensuring reliable operation in harsh industrial environments. Whether used in packaging, electronics assembly, or general automation, the HF-KN13 offers a perfect balance of power, precision, and ease of use.

Key Features & Benefits

High-Precision Control: Equipped with a standard 17-bit incremental encoder (131,072 pulses/revolution), enabling ultra-fine resolution for precise positioning and smooth low-speed operation.
Ultra-High Response: Achieves a speed frequency response of 2.0 kHz, significantly reducing settling time and improving cycle efficiency in high-speed picking and placing applications.
Compact & Lightweight: Weighing approximately 0.6 kg (for the J-model), the low-inertia design allows for rapid acceleration and deceleration, minimizing mechanical stress on the driven equipment.
Rugged Construction: Features an IP65 protection rating (motor and encoder), making it resistant to dust, water jets, and oil, suitable for harsh factory floors without additional enclosures.
Advanced Tuning Capabilities: Supports "One-Touch Tuning" for automatic gain adjustment and includes Adaptive Vibration Suppression and Robust Filter II to eliminate resonance and stabilize operation.
Energy Efficient: Incorporates a "Tough Drive" feature with large-capacity capacitors to utilize regenerative energy, reducing power consumption and heat generation.
Flexible Wiring: Supports both Sink (NPN) and Source (PNP) wiring configurations for input signals, simplifying integration with various PLCs and controllers.

Technical Specifications

Parameter	Specification
Product Series	MR-JE Series (HF-KN Series)
Model	HF-KN13J-S100 / HF-KN13BJ-S100
Motor Type	AC Servo Motor (Low Inertia)
Rated Output Power	100 W (0.1 kW)
Rated Speed	3000 r/min
Max. Speed	4500 - 5175 r/min
Rated Torque	0.32 N*m
Maximum Torque	0.95 N*m (approx. 3x rated)
Encoder Resolution	17-bit (131,072 pulses/rev)
Power Supply Voltage	200V - 230V AC (via Driver MR-JE-10A)
Control Mode	Position, Speed, and Torque Control
Protection Rating	IP65 (Motor body & Encoder, oil seal included)
Insulation Class	Class B (130°C)
Cooling Method	Self-cooling (Fanless)
Weight	Approx. 0.6 kg (HF-KN13J) / 0.8 kg (HF-KN13BJ)
Certifications	CE, UL, cUL, RoHS

Model Suffix Guide

J: Standard shaft with oil seal.
B: Equipped with holding brake (24V DC).
S100: Indicates rated output power (100W class) and standard specifications.

System Integration

The HF-KN13 is designed to be paired with the Mitsubishi MR-JE-10A servo amplifier (drive). This combination forms a complete servo system supporting advanced functions such as:

High-Speed Pulse Train: Supports up to 4 Mpps (Mega pulses per second) for high-speed positioning.
Built-in Positioning: Eliminates the need for an external motion controller in simple point-to-point applications.
Communication: Supports Modbus RTU and can be integrated into CC-Link, MECHATROLINK, or EtherCAT networks via optional adapter cards.

Typical Applications

Packaging Machinery: Labeling machines, filling nozzles, and sealing bars requiring high-speed synchronization.
Electronics Manufacturing: Pick-and-place machines, wire bonders, and PCB handling equipment.
Small Conveyors & Feeders: Precise indexing and length measurement in material handling systems.
Medical & Lab Automation: Precise fluid handling and sample positioning.
Textile Machinery: Yarn guides and tension control in knitting or weaving machines.

Ordering Information

Manufacturer: Mitsubishi Electric Corporation
Product Family: MR-JE Series Servo Motors
MPN: HF-KN13J-S100 (Standard), HF-KN13BJ-S100 (With Brake)
Compatible Drive: MR-JE-10A (Recommended), MR-JE-10AG (Analog input version)
