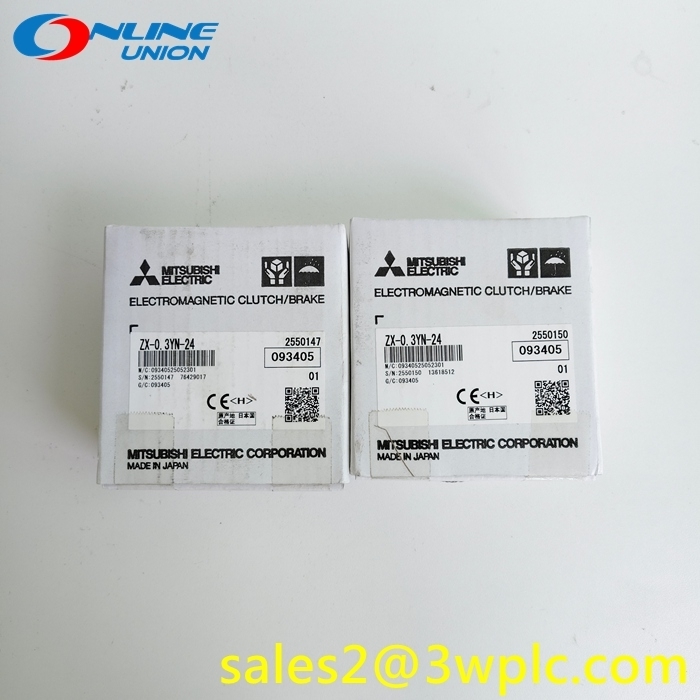

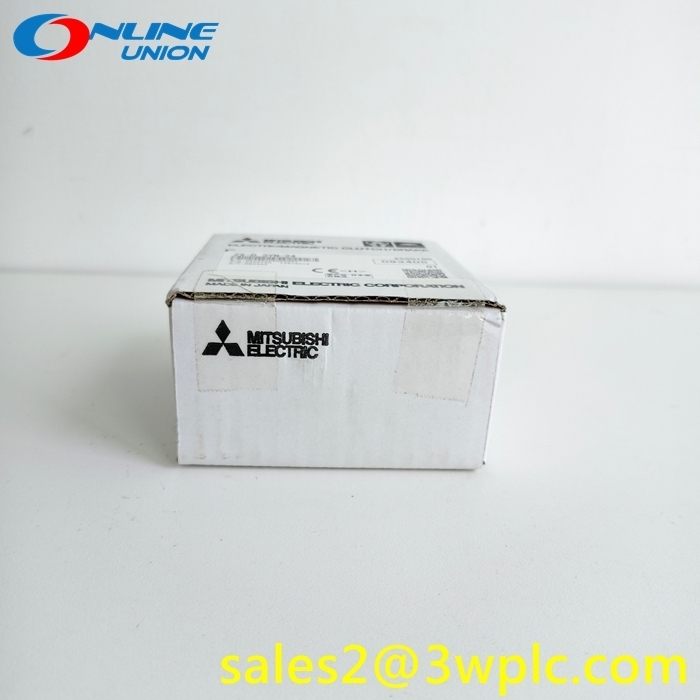

Name: ZX-0.3YN-24 MITSUBISHI Magnetic Powder Clutch Precision Tension Control Component
Brand: Xiamen Online Union Technology Co., Ltd
SKU: ZX-0.3YN-24
Price: 50.00 USD
Availability: InStock

Home > Products > Mitsubishi Module >

ZX-0.3YN-24 MITSUBISHI Magnetic Powder Clutch Precision Tension Control Component

Mitsubishi magnetic powder clutch 24V DC

0.3N·m magnetic powder clutch

Mitsubishi ZX-0.3YN-24 clutch module

Place of Origin:

Japan

Brand Name:

MITSUBISHI

Model Number:

ZX-0.3YN-24

Request A Quote

Product Details

Rated Torque:

0.3 N·m (30 Kgf·cm)

Max Torque:

1.0 N·m (100 Kgf·cm)

Voltage:

DC 24V

Current:

0.7A (rated)

Response Time:

<1ms (magnetic Field Activation)

Protection Class:

IP54 (optional IP65)

Highlight:

Mitsubishi magnetic powder clutch 24V DC

0.3N·m magnetic powder clutch

Mitsubishi ZX-0.3YN-24 clutch module

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

Q06UDVCPU Mitsubishi High Speed Module General Purpose CPU Module

Get Best Price

ZKB-0.6YN MITSUBISHI High Precision Magnetic Particle Brake DC 24V 1800 R/Min

Get Best Price

RM100C2Z-H Mitsubishi High Precision Module Low Profile Electronic Module

Get Best Price

QY81P Mitsubishi 32 Points Module Output Module Overview 24VDC

Get Best Price

Contact Now

Product Description

ZX-0.3YN-24 MITSUBISHI Magnetic Powder Clutch Precision Tension Control Component

Product Overview

The ZX-0.3YN-24 is a compact, low-inertia magnetic powder clutch from Mitsubishi Electric's ZX-YN series, designed for precise tension control and dynamic braking in industrial automation. Leveraging Mitsubishi's patented magnetic powder technology, this clutch ensures smooth torque transmission, rapid response, and durability in demanding applications such as packaging, printing, and textile machinery.

Key Features

Precision Torque Control

Linear relationship between excitation current and torque, enabling accurate tension adjustment
Torque range: 0.3 N*m (rated) to 1.0 N*m (max)

Rapid Response

Magnetic field-driven operation eliminates mechanical lag, achieving near-instantaneous torque changes
Suitable for frequent start/stop cycles

Durable Design

Spherical alloy magnetic powder ensures wear resistance and long service life
Natural cooling structure with high thermal capacity for continuous slip operation

Compact & Lightweight

Hollow shaft design reduces space requirements and simplifies integration
IP54 protection (optional higher ratings) for harsh environments

Versatile Compatibility

Works with Mitsubishi's LE-series tension controllers (e.g., LE-40MTB-E) for automated systems
Supports manual or programmable control modes
