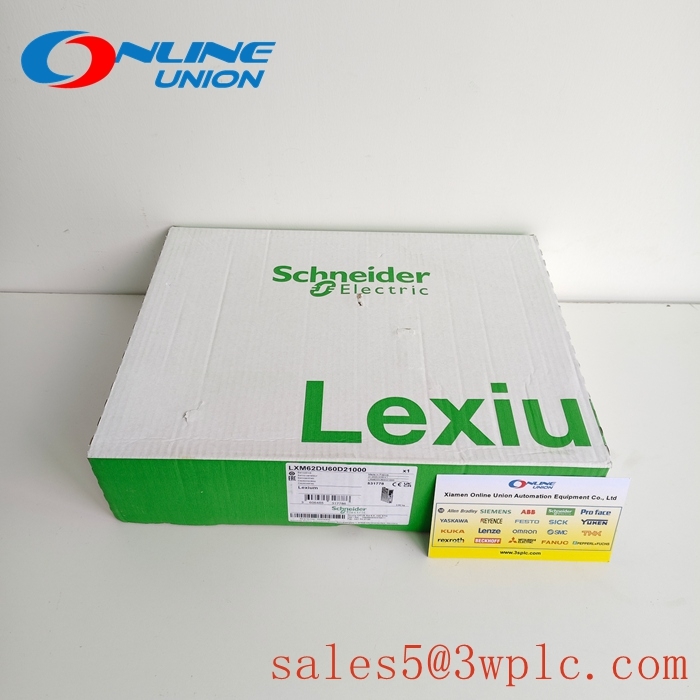

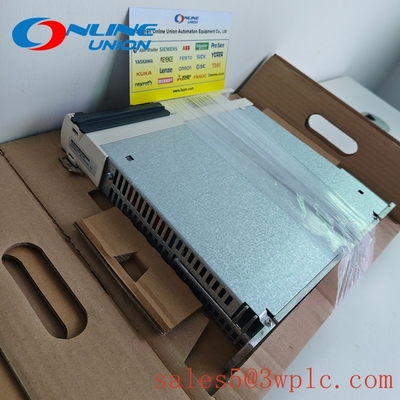

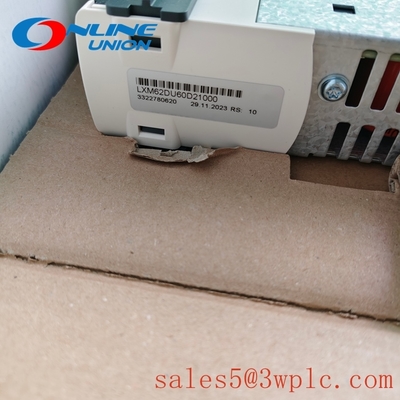

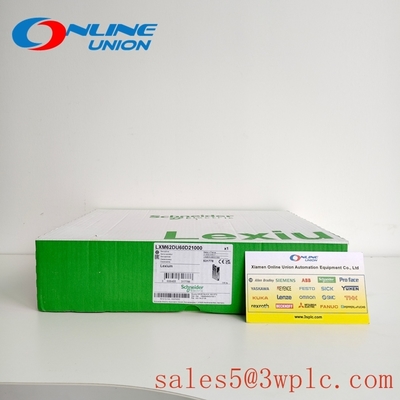

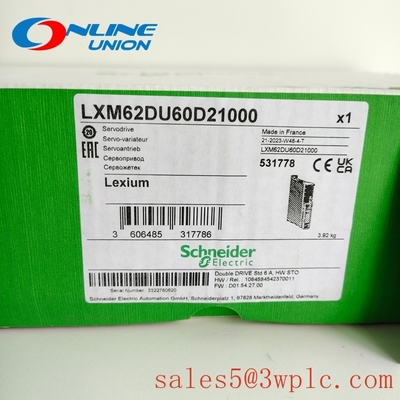

LXM62DU60D21000 SCHNEIDER Lexium 62 Double Drive

SCHNEIDER LXM62DU60D21000 Lexium 62 Double Drive

Product Description

The SCHNEIDER LXM62DU60D21000 is a Lexium 62 integrated stepper drive and motor system, a highly compact and efficient all-in-one solution for precise motion control applications. This specific model combines a high-torque stepper motor with an integrated intelligent drive and a built-in motion controller, significantly simplifying machine design and wiring. It is part of Schneider Electric's innovative Lexium series, designed to offer servo-like performance with the simplicity and cost-effectiveness of a stepper system.

Its key advantage lies in its integrated nature, which eliminates the need for separate components, reduces cabinet space, and minimizes installation time. The drive supports various control modes, including pulse and direction, velocity, or torque mode, and can be easily configured and tuned using the dedicated SoMove software. This makes it an ideal choice for a wide range of automation tasks requiring precise positioning and synchronization, such as in packaging, material handling, printing, and assembly equipment. The system is designed for robust performance in industrial environments.

.

Technical Specifications:

The SCHNEIDER LXM62DU60D21000 is an integrated stepper system with a NEMA 23 frame size motor. The integrated drive operates on a single-phase 100-240 V AC power supply, with a rated current of 6.0 A RMS. The motor itself is a 2-phase stepper motor providing a holding torque of 2.1 Nm. It features a high-resolution encoder with 16,000 counts per revolution, enabling closed-loop control for improved accuracy, higher efficiency, and the ability to detect and recover from step losses.

This model offers a wide range of connectivity options, including a built-in EtherNet/IP interface for seamless integration into modern industrial networks, allowing for centralized control and diagnostics. It also features integrated digital and analog I/O (3 digital inputs, 2 digital outputs, and 1 analog input) for direct connection to sensors and other peripheral devices. The device is protected against overcurrent, overvoltage, and short circuits and features an IP65 protection rating for the motor and an IP20 rating for the drive section, making it suitable for use in demanding environments where dust or moisture may be present.
