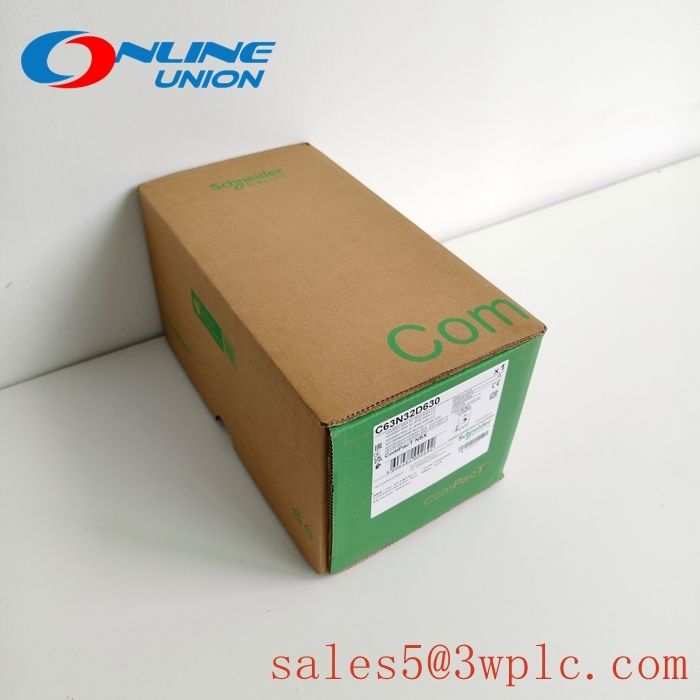

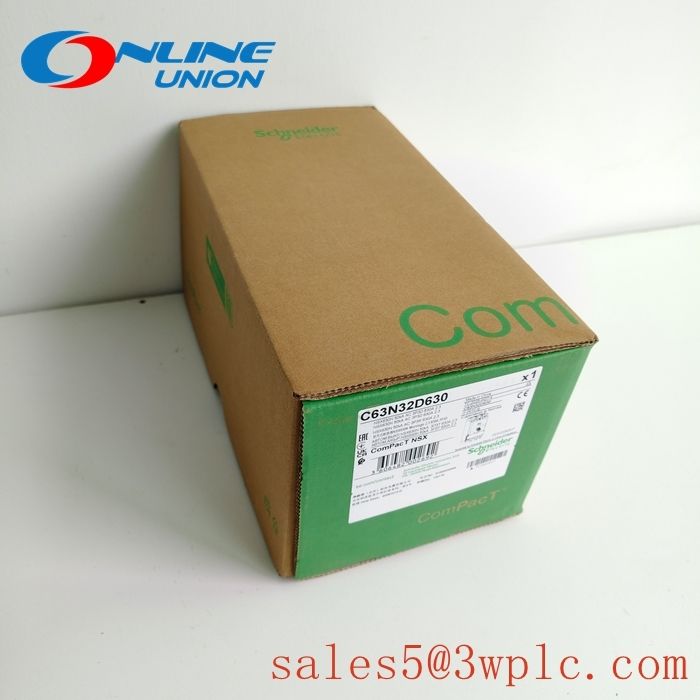

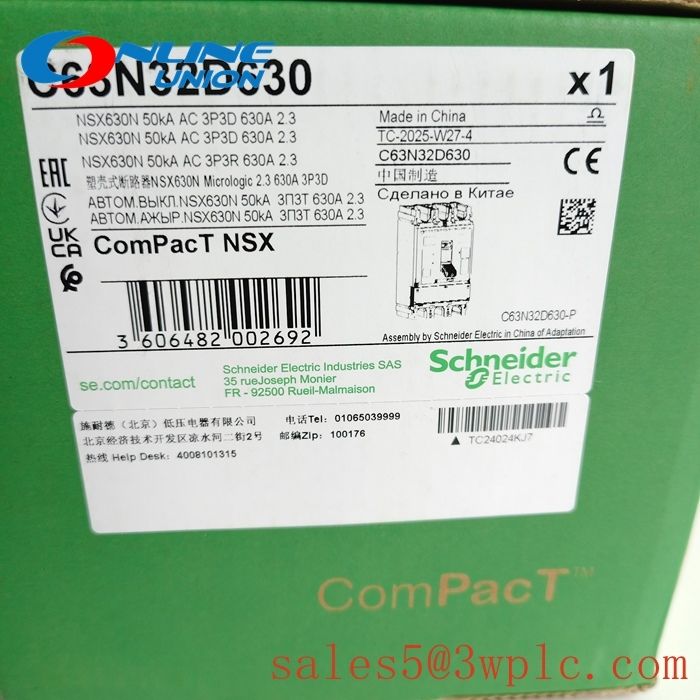

SCHNEIDER C63N32D630 Circuit breaker Compact NSX630N
Product Description
The SCHNEIDER C63N32D630 is a four-pole, compact circuit breaker from Schneider Electric's renowned Acti 9 range, specifically within the iC60 series. This miniature circuit breaker (MCB) is designed for electrical installation protection in residential, commercial, and light industrial applications. Its primary function is to automatically shut off electrical power in a circuit during abnormal conditions, namely overloads and short circuits, thereby protecting wiring, equipment, and property from damage and preventing fire hazards.
This particular model is characterized by its D curve tripping characteristic. This characteristic is specifically designed for circuits with high inrush currents, such as those powering transformers, solenoid coils, or certain types of industrial lighting and motors. The D curve allows for a higher momentary surge of current without causing a nuisance trip, while still providing reliable protection against sustained overloads and dangerous short-circuit faults. Its compact design allows for efficient use of space in distribution boards, and its easy-to-instail clip-on mounting ensures quick and secure assembly on standard DIN rails.
.
Technical Specifications:
The SCHNEIDER C63N32D630 is a four-pole miniature circuit breaker with a rated current of 32 Amperes and a rated operational voltage of 400/415V AC. It features a D-type tripping curve, which has a tripping current between 10 and 20 times the rated current (10-20 x In), making it suitable for applications with high intrush currents. Its breaking capacity is 6 kA at 230/400V AC according to IEC/EN 60898-1, indicating its ability to safely interrupt short-circuit currents up to 6000 Amperes.
The device is designed for DIN rail mounting (on a 35mm top-hat rail) and utilizes screw-type terminals for secure and reliable conductor connections. It complies with key international standards including IEC/EN 60898-1 and IEC/EN 60947-2. The overall design ensures a high level of safety and performance, providing essential protection for electrical circuits.
Our Services:
1.All our products are new and orginal, and of good quality
2.Our prices are very competitive.
3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4.All inquiries will be valued and will reply in 24.
Packing & Delivery:
1.100% brand New and Original Factory Seal!
2.Warranty:1 year

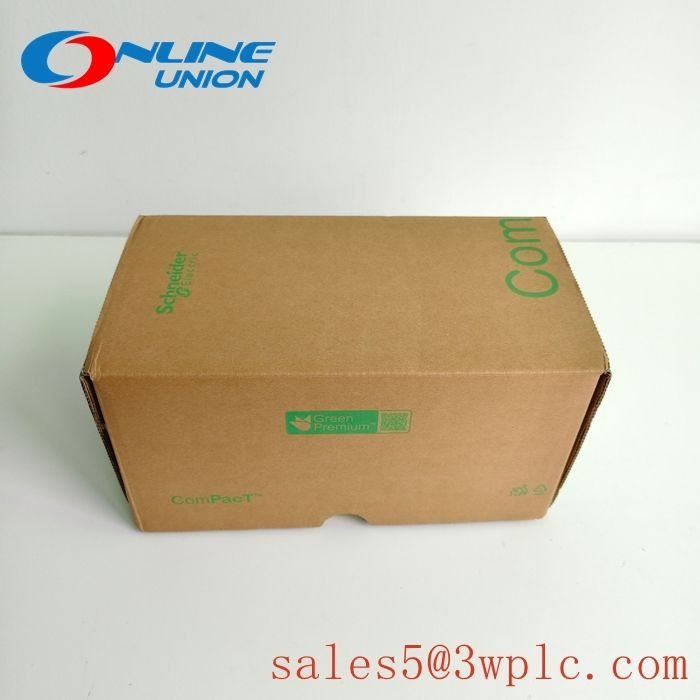

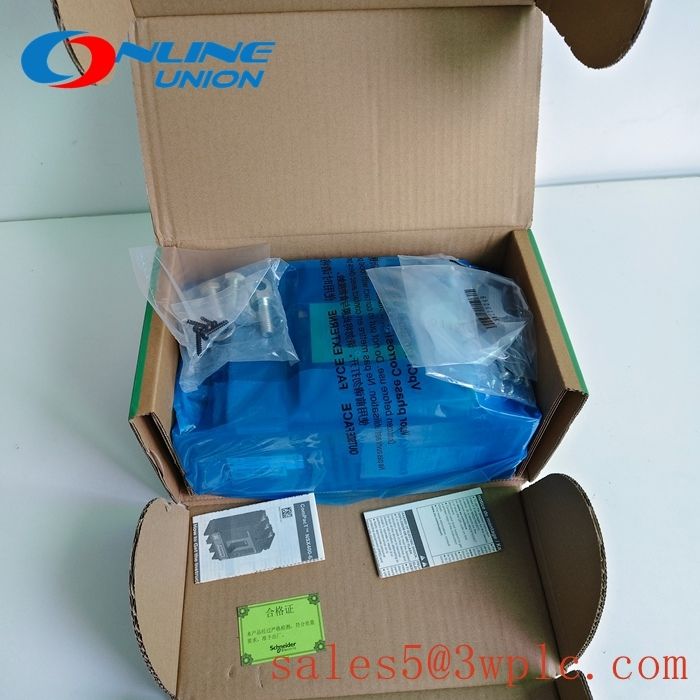

3.Package: Original packing with cartons.
4.Delivery time: Shipped in 3-7 days after payment
5.All the goods will be tested before shipment
