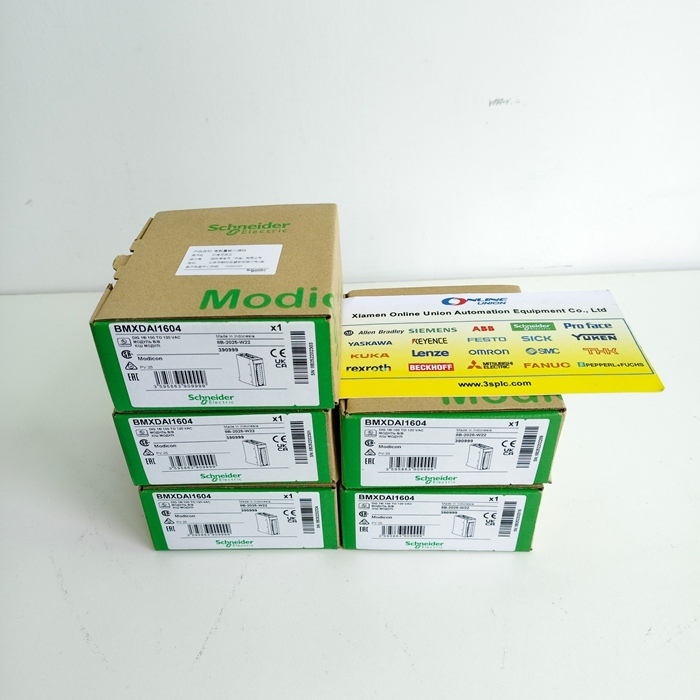

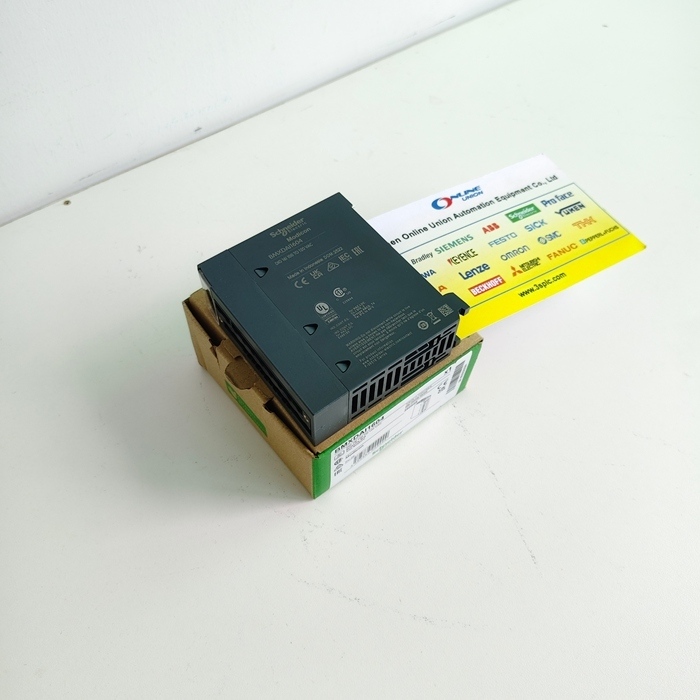

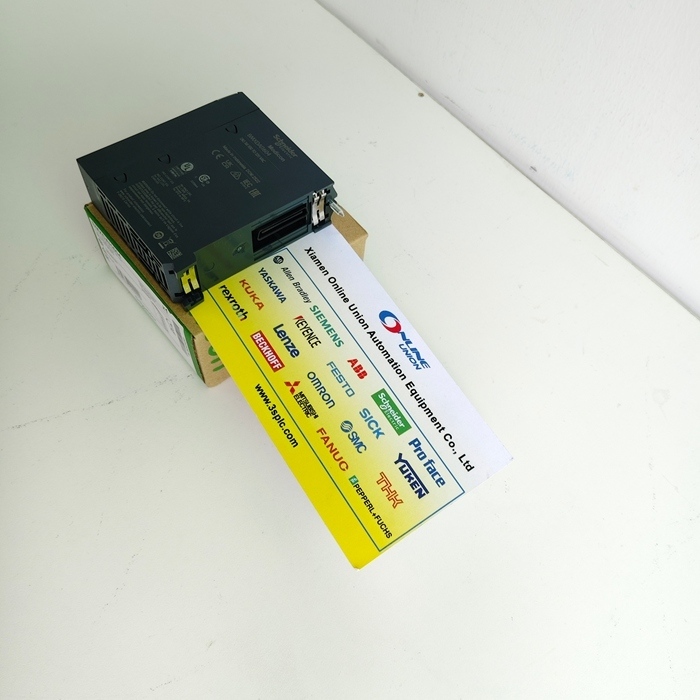

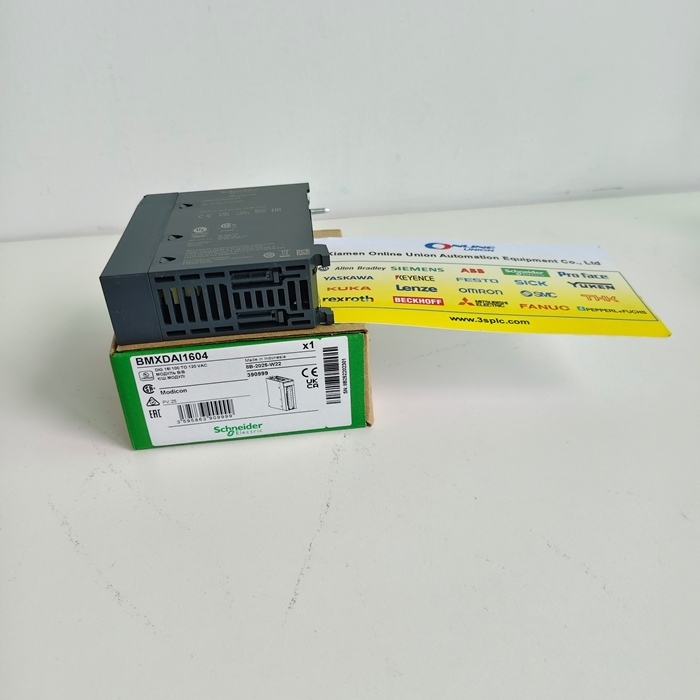

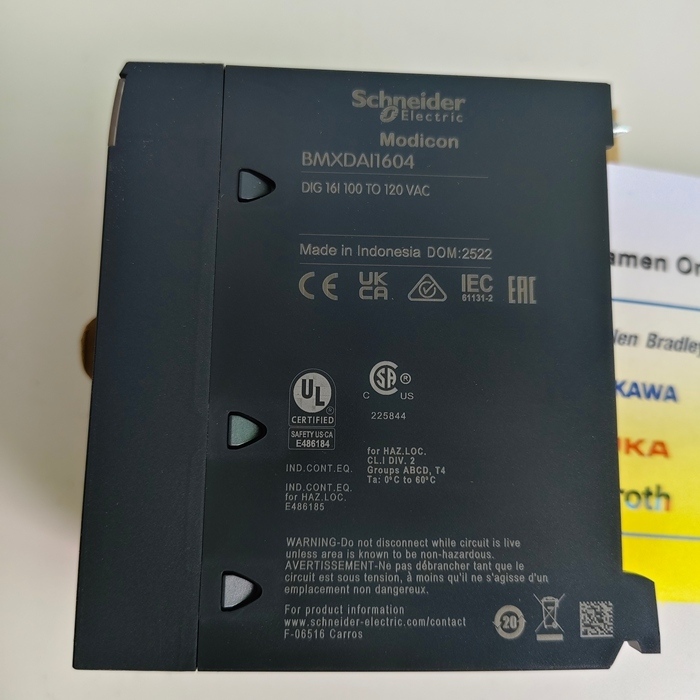

BMXDAI1604 Schneider Discrete Input Module, Modicon X80, 16 Inputs, 100 To 120V AC

Product Overview

The BMXDAI1604 is a 16-channel discrete AC input module from Schneider Electric's Modicon X80/M340 series, designed for industrial automation applications.

Core Features

16 isolated capacitive inputs
Voltage Range: 100-120 V AC (compatible with 2-wire/3-wire proximity sensors per IEC 60947-5-2)
Input Current: 5 mA (typical)
Input Impedance: 13,000 Ω (ensures high accuracy and reliability)
Power Dissipation: ≤ 3.8 W (AC operation)
Response Times: Activation filtering: 10 ms, Deactivation filtering: 20 ms
Protection: 0.5 A fast-blow fuse per channel group
IP20 environmental protection (dust-resistant, suitable for indoor use)

Electrical Specifications

Network Frequency	50/60 Hz (compatible with 47-63 Hz)
Sensor Power Supply	20-26 V DC (internal supply for connected sensors)
Voltage/Current Thresholds	State 1 (ON): ≥ 74 V AC / ≥ 2.5 mA State 0 (OFF): ≤ 20 V AC / ≤ 1 mA
Insulation Resistance	> 10 MΩ (500 V DC test)

Physical & Environmental Specifications

Weight	0.115 kg
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5-95% (non-condensing at ≤ 55°C)
Dimensions	35 mm width, 15 mm depth (fits standard DIN rails)
Connector	20-way connector for electrical connections

Packing & Delivery

100% brand new and original factory sealed
1 year warranty
Original packing with cartons
Shipped in 3-7 days after payment
All goods tested before shipment
