Product Description

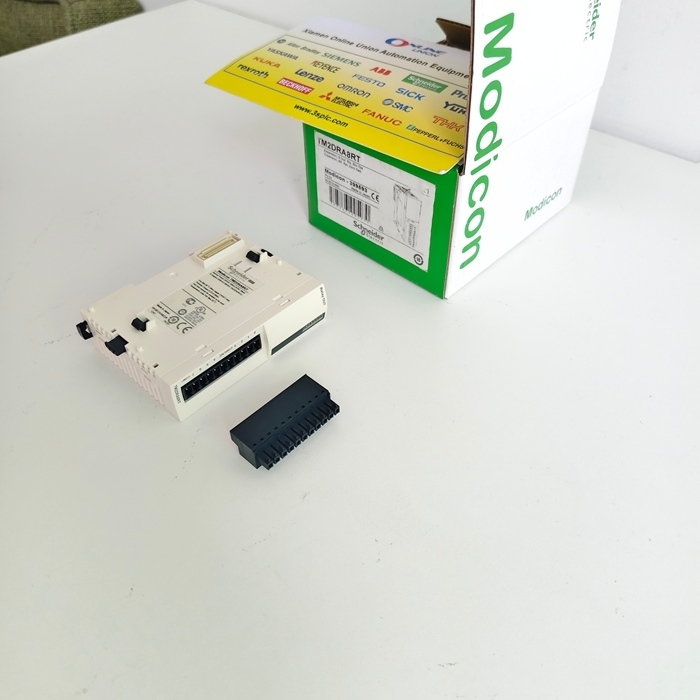

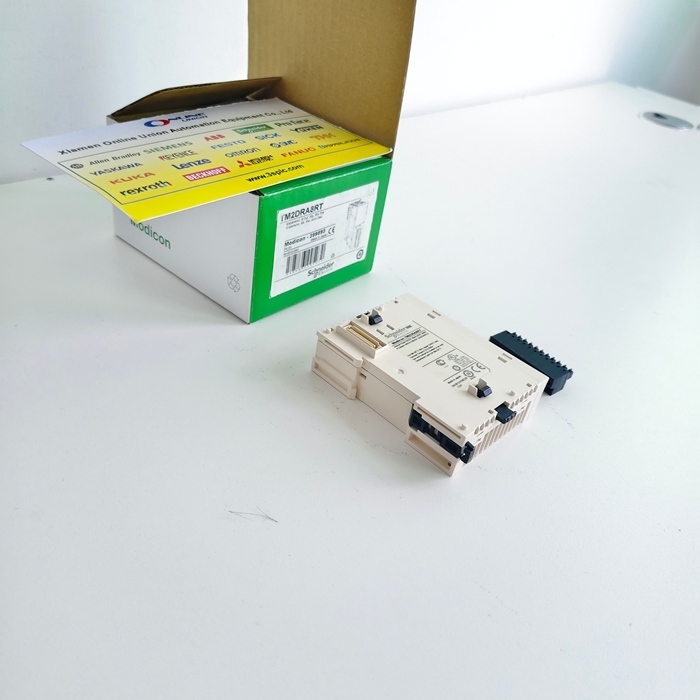

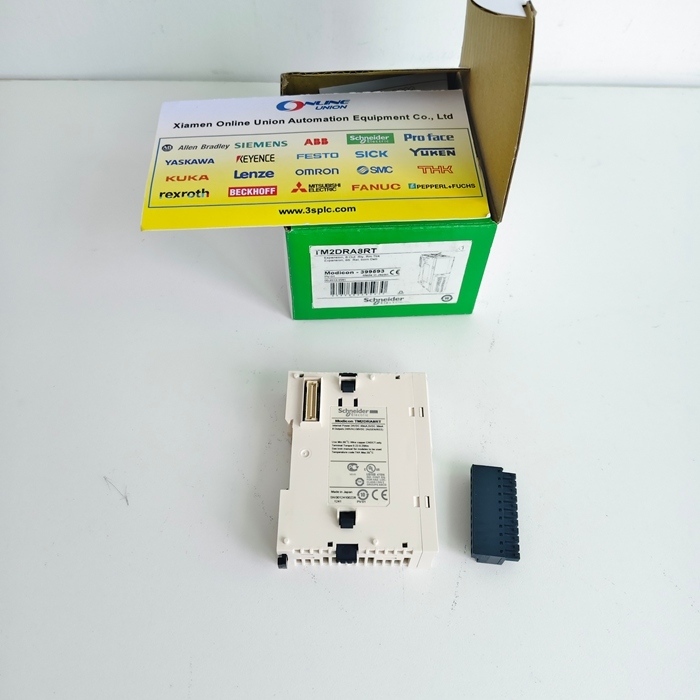

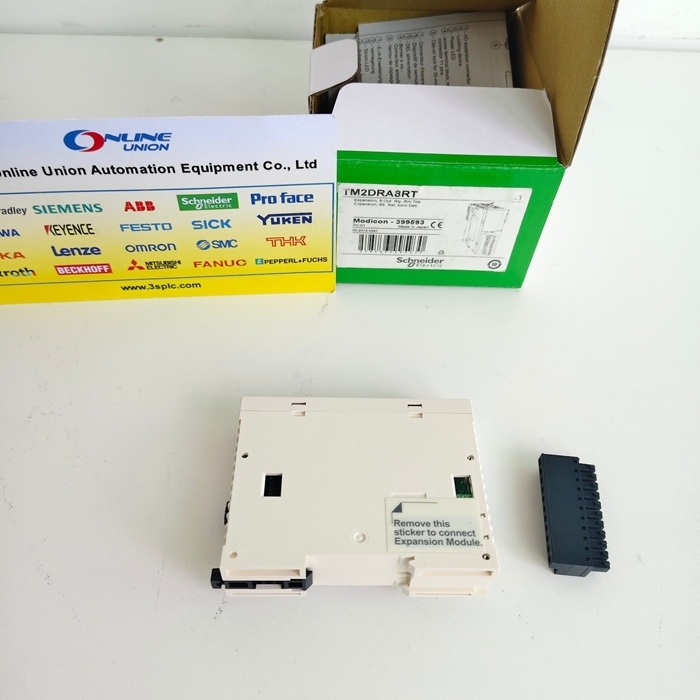

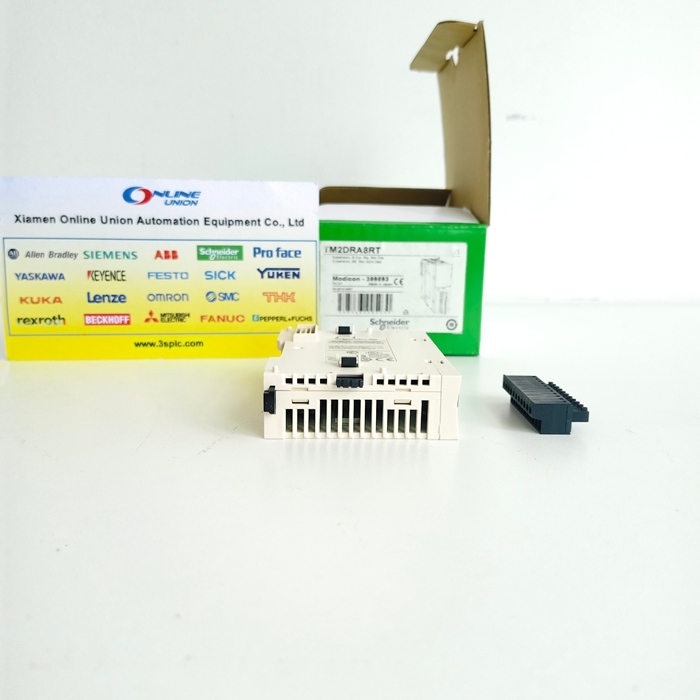

TM2DRA8RT Schneider I/O Expansion Module, Modicon M238 Logic Controller

The TM2DRA8RT is a digital relay output expansion module from Schneider Electric, designed for the Modicon M238 logic controller family. It provides 8 normally open (NO) relay outputs, enabling control of high-voltage or high-current devices in industrial automation systems. The module supports both AC (230V) and DC (30V) relay voltages, with a nominal operating voltage of 24V DC. Its compact design (27.3mm width × 90mm height × 84.6mm depth) and 35mm DIN rail mounting make it suitable for space-constrained control cabinets. The removable screw terminal block simplifies wiring, while built-in isolation (2300V AC rms between channels and internal logic) enhances electrical safety.

Technical Specifications

Output Type	8 NO relay contacts
Relay Voltage	AC: 230V (resistive load) DC: 30V (inductive/resistive load)
Output Current	Per channel: 2A (AC/DC) Per common group: 7A
Response Time	Off-On/On-Off: ≤4ms State transition (0->1/1->0): ≤10ms (0->1), ≤5ms (1->0)
Isolation	Between channels: 1500V AC rms for 1 minute Between channels and logic: 2300V AC rms for 1 minute
Mechanical Durability	20,000,000 cycles
Electrical Durability	AC-15 (240V AC, 0.5A inductive): 100,000 cycles AC-15 (240V AC, 1A inductive): 100,000 cycles DC-13 (24V DC, 1A inductive): 100,000 cycles Resistive loads (240V AC/30V DC, 2A): 100,000 cycles
Power Consumption	30mA (5V DC) / 40mA (24V DC) at state 1 (all outputs active)
Environmental	Operating temperature: 0-50°C Storage temperature: -25-70°C Humidity: 5-95% (non-condensing)

Packing & Delivery

100% brand New and Original Factory Seal!
Warranty: 1 year
Package: Original packing with cartons
Delivery time: Shipped in 3-7 days after payment
All goods tested before shipment
