Product Description

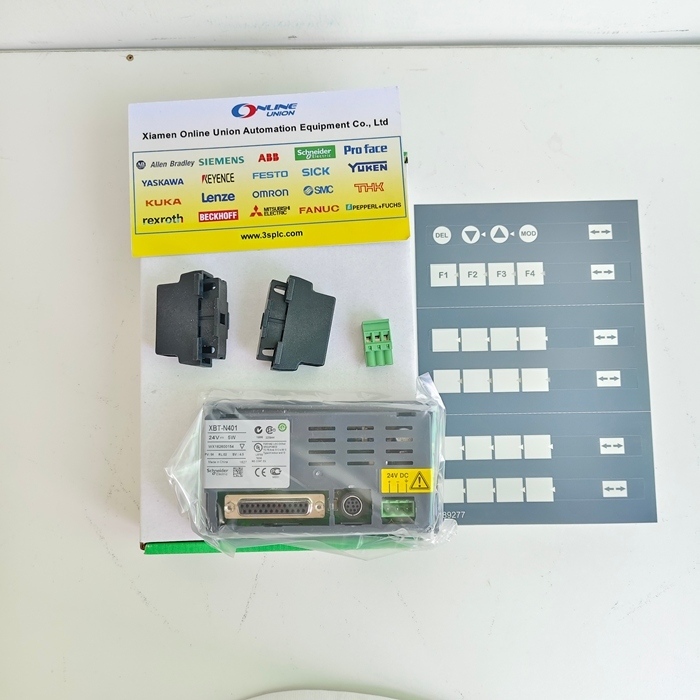

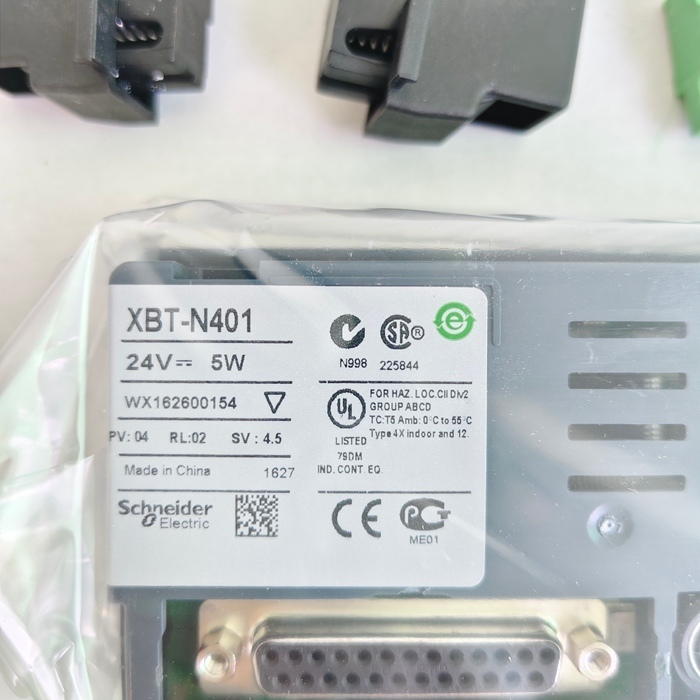

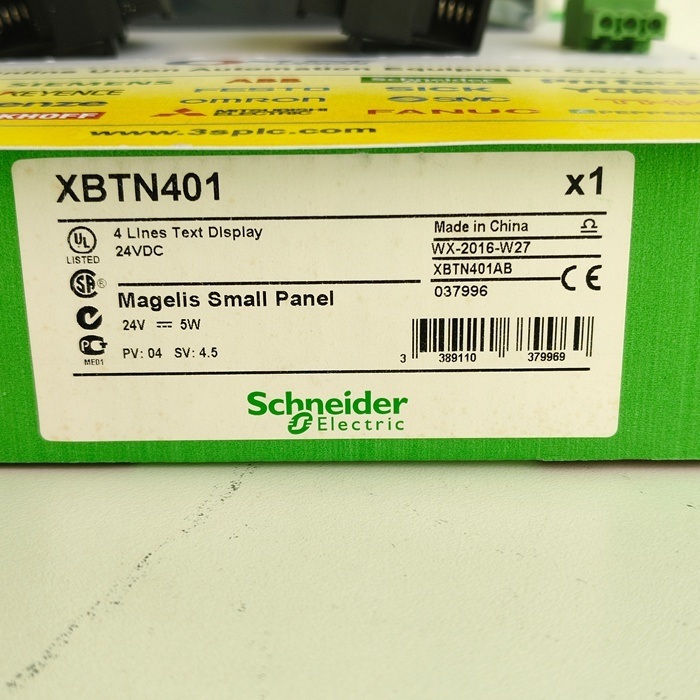

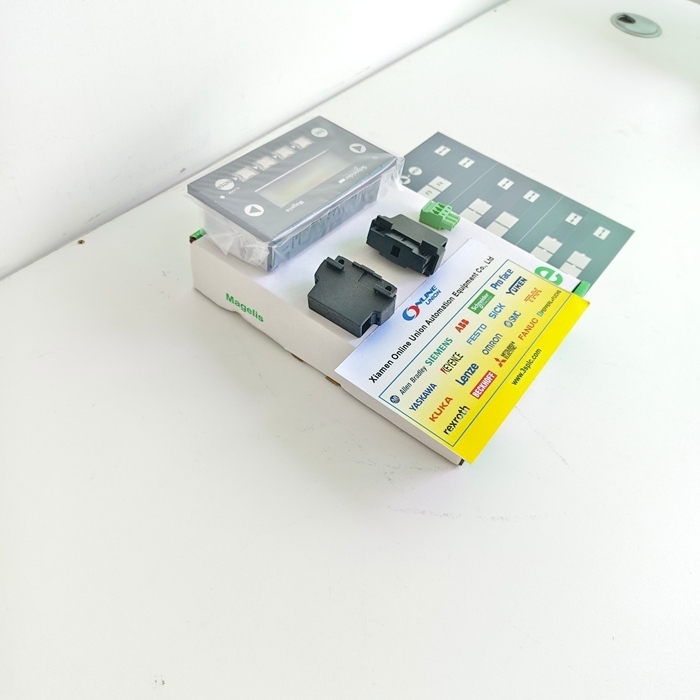

XBTN401 Schneider Small Panel With Keypad, With Matrix Screen

The XBTN401 is a compact LCD HMI (Human-Machine Interface) terminal manufactured by Schneider Electric (formerly Telemecanique). Designed for industrial automation, it provides a cost-effective solution for monitoring and controlling PLC-based systems. The device features a 122x32-pixel monochrome display with three-color backlighting (green, orange, red), enabling visual alerts for different operational states.

Technical Specifications

Display
Type	LCD (Matrix)
Resolution	122x32 pixels
Backlight	3 colors (green/orange/red)
Viewing Area	72mm x 20mm
Physical Dimensions
Length	119.4mm
Width	74mm
Depth	37mm (excluding connectors)
Panel Cutout	119mm x 63mm
Power Supply
Voltage	24V DC (max 24V)
Power Consumption	5W (typical)
Connection	3-screw terminal block
Communication
Ports	2 ports (RS232C/RS485)
Protocols	Modbus, Uni-Telway

User Interface Features

8 configurable keys (4 with customizable legends)
Fixed keys: ESC, ENTER, arrow keys (left/right)
4 signal LEDs for status indication
200 application pages
256 alarm pages (25 lines per page)
Real-time clock accessible via PLC

Environmental Specifications

Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 70°C
Humidity: 5% to 95% (non-condensing)
Protection: IP20 (front panel)
Compliance: RoHS-certified

Packing & Delivery Information

100% brand new and original factory sealed
1-year warranty

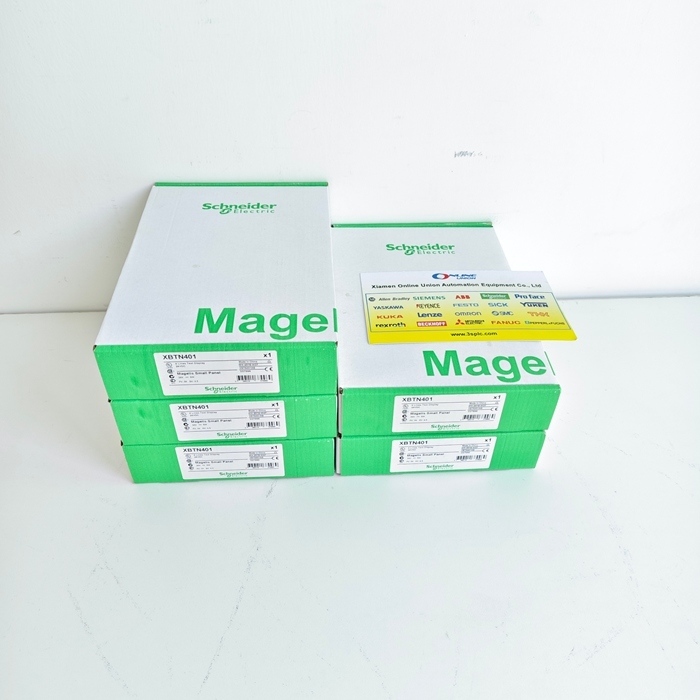

Original packing with cartons
Shipped in 3-7 days after payment
All goods tested before shipment
