Name: XBTN410 Schneider Small Panel With Keypad, With Matrix Screen
Brand: Xiamen Online Union Technology Co., Ltd
SKU: XBTN410
Price: 50.00 USD
Availability: InStock

Home > Products > Schneider Module >

XBTN410 Schneider Small Panel With Keypad, With Matrix Screen

Schneider small panel with keypad

Schneider module with matrix screen

keypad panel with warranty

Place of Origin:

Frence

Brand Name:

Schneider

Model Number:

XBTN410

Request A Quote

Product Details

Highlight:

Schneider small panel with keypad

Schneider module with matrix screen

keypad panel with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

Powerful Schneider Module Schneider 140NOM25200C Automation Control Functions

Get Best Price

400MHz Schneider 170BDM34400 Building Automation Systems High Security

Get Best Price

XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay

Get Best Price

Easy Installation Schneider TSXDSF612 CPU Module Modicon Premium Series

Get Best Price

Contact Now

Product Description

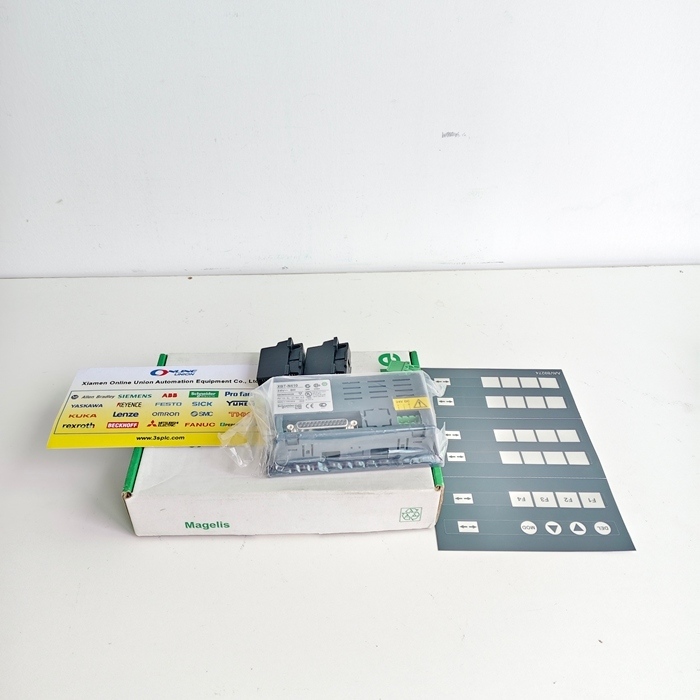

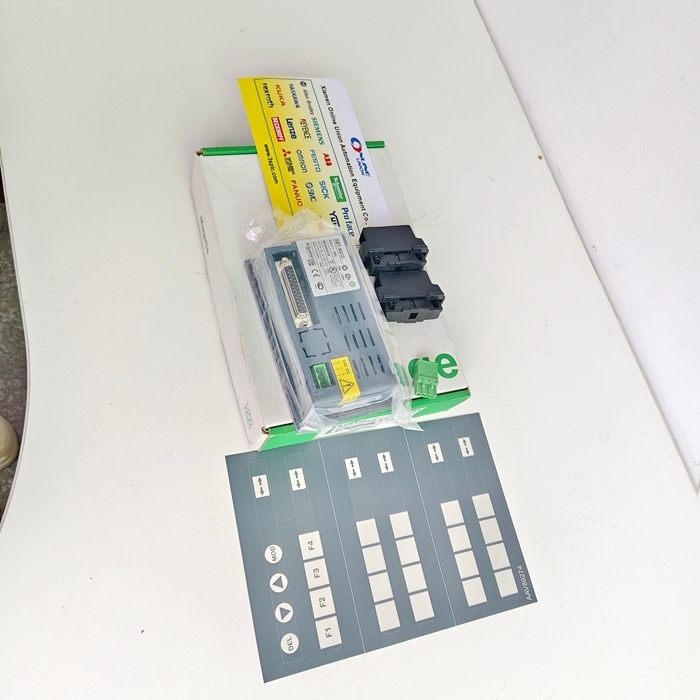

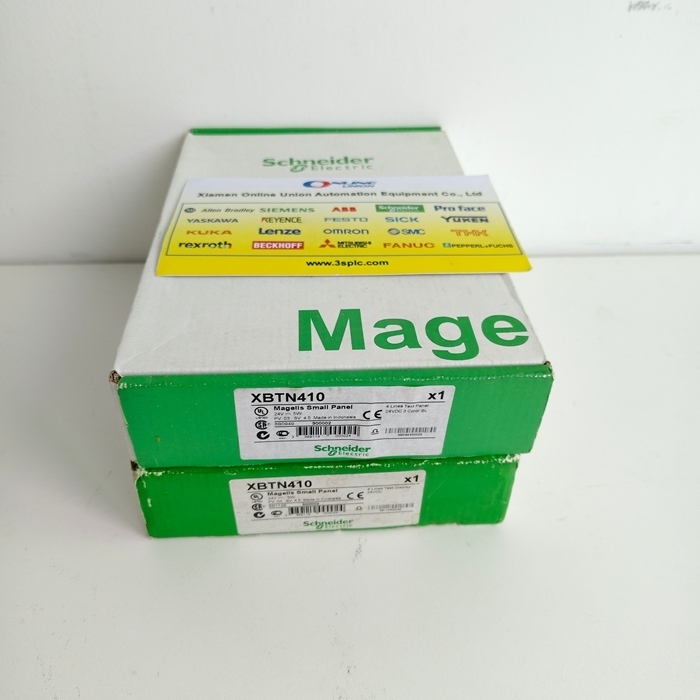

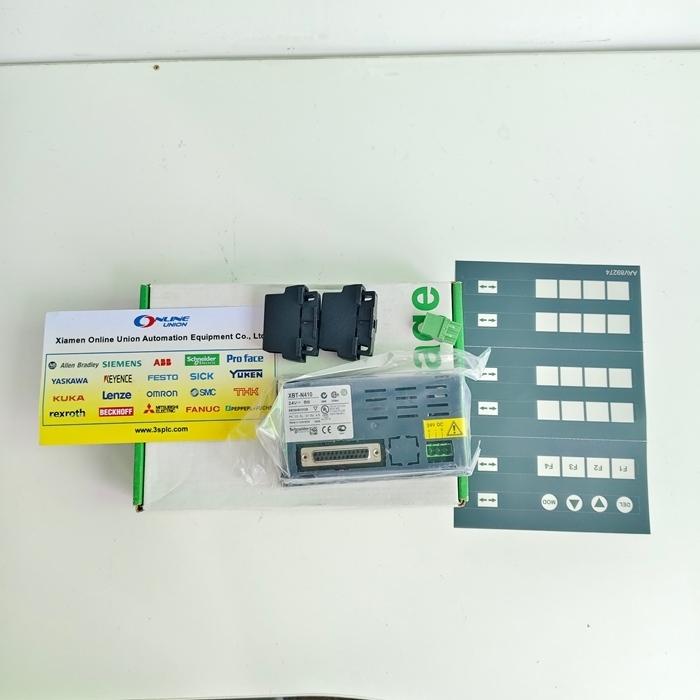

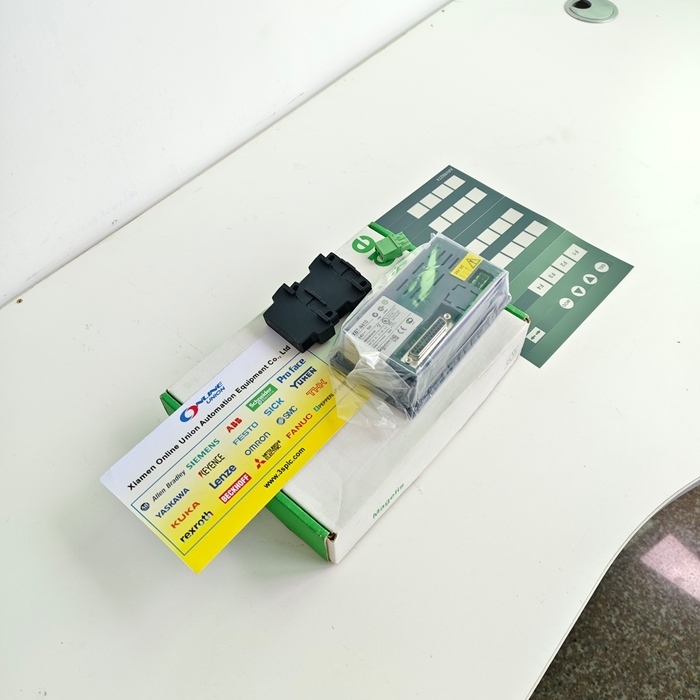

XBTN410 Schneider Small Panel With Keypad, With Matrix Screen

The XBTN410 is a compact, monochrome text display terminal from Schneider Electric's Magelis XBT N series, designed for industrial automation applications requiring simple operator interfaces.

Technical Specifications

Display Type	4-line x 20-character green backlit LCD (122x32 pixels)
Input Method	8-key tactile keyboard (4 fixed keys + 4 customizable keys)
Communication	1x RS-232/RS-485 serial port (SUB-D 25 connector)
Supported Protocols	Modbus, Uni-TE, Modbus Slave
Compatibility	Schneider Electric PLCs (Twido, TSX Micro, Premium, Quantum, M340)
Software	Configurable via Vijeo Designer Lite (free entry-level software)
Power Supply	24 VDC (18-30 VDC range)
Power Consumption	≤5 W
Memory	512 KB flash storage
Operating Temperature	0-55°C (32-131°F)
Storage Temperature	-20-60°C (-4-140°F)
Relative Humidity	0-85% non-condensing
IP Rating	IP20 (front panel), IP65 (rear)
Dimensions	132 mm (W) x 74 mm (H) x 43 mm (D)
Weight	0.38 kg (0.84 lbs)
Mounting	Panel or flush installation

Packing & Delivery

100% brand new and original factory seal
Warranty: 1 year
Package: Original packing with cartons
Delivery time: Shipped in 3-7 days after payment
All goods tested before shipment
