Name: METSEPM5560 Schneider Power Meter PowerLogic PM5560, 2 Ethernet
Brand: Xiamen Online Union Technology Co., Ltd
SKU: METSEPM5560
Price: 50.00 USD
Availability: InStock

Home > Products > Schneider Module >

METSEPM5560 Schneider Power Meter PowerLogic PM5560, 2 Ethernet

Schneider PowerLogic PM5560 power meter

Schneider PM5560 Ethernet power meter

Schneider Module PM5560 with Ethernet

Place of Origin:

Frence

Brand Name:

Schneider

Model Number:

METSEPM5560

Request A Quote

Product Details

Range:

PowerLogic

Product Name:

PowerLogic PM5000

Device Short Name:

PM5560

Product Or Component Type:

Power Meter

Network Frequency:

60 Hz 50 Hz

Maximum Power Consumption In VA:

16 VA 480 V

Display Type:

Backlit LCD

Display Resolution:

128 X 128 Pixels

Sampling Rate:

128 Samples/cycle

Measurement Current:

50…10000 MA

Highlight:

Schneider PowerLogic PM5560 power meter

Schneider PM5560 Ethernet power meter

Schneider Module PM5560 with Ethernet

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

XCSE7311 Schneider Plug-in Safety Door Lock Switch

Get Best Price

METSEPM5560 Schneider Power Meter PowerLogic PM5560, 2 Ethernet

Get Best Price

TM1SHTCC4 Schneider Humidity And Temperature Sensor, 4-20 MA

Get Best Price

TSXAEY800 Schneider Analog Input Module, Modicon Premium

Get Best Price

Contact Now

Product Description

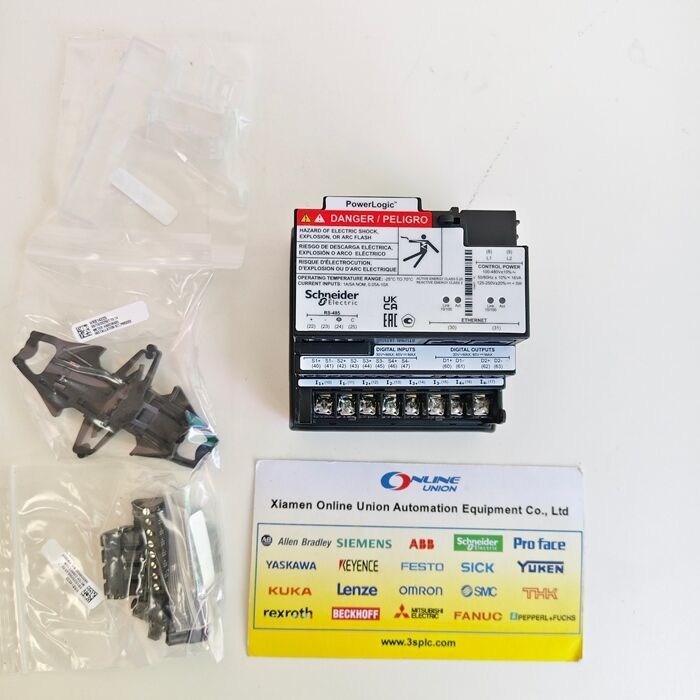

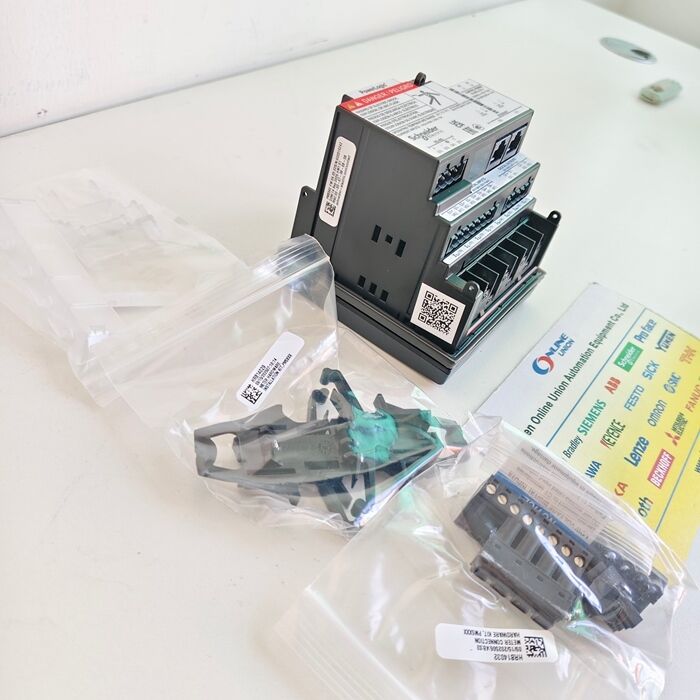

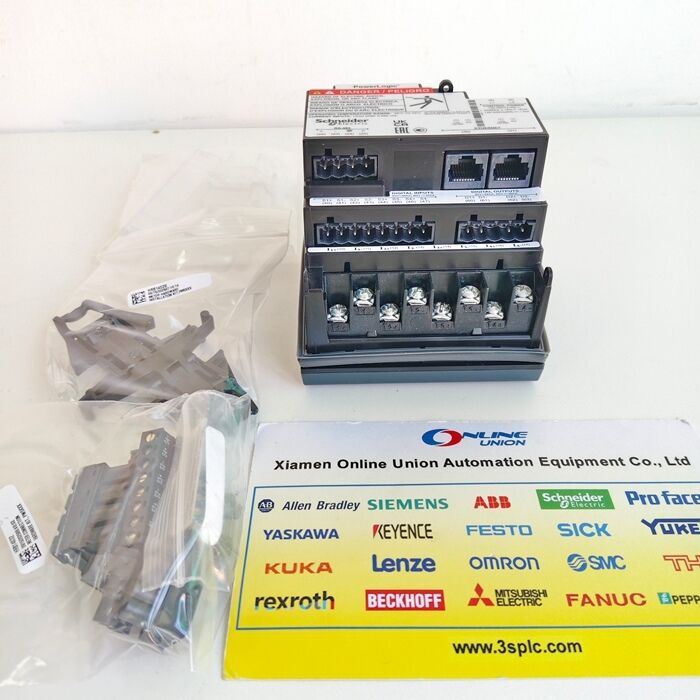

METSEPM5560 Schneider Power Meter PowerLogic PM5560, 2 Ethernet

The METSEPM5560 is a sophisticated power meter from Schneider Electric's PowerLogic series, designed for precise energy monitoring and analysis. This panel-mount meter features an integrated 96 x 96 mm backlit LCD display and fits into a 1/4 DIN panel cutout. Engineered for versatility, it operates effectively across a wide supply voltage range of 100 to 300 V AC, with capability up to 828 V AC under specific conditions.

Technical Specifications

Supply Voltage	100 to 300 V AC (up to 828 V AC under specific conditions)
Network Frequency	45 to 65 Hz
Line Rated Current	1 A / 5 A
Type of Network	3P + N, 3P, 1P + N
Maximum Power Consumption	16 VA at 480 V
Display Type	Backlit LCD
Display Resolution	128 x 128 pixels
Sampling Rate	128 samples per cycle

Measurement Accuracy

Active Power	±0.2%
Reactive Power	±1%
Apparent Power	±0.5%
Voltage	±0.1%
Current	±0.15%
Power Factor	±0.005
Frequency	±0.05%
Active Energy	±0.2% (conforming to IEC 62053-22, Class 0.2S)
Reactive Energy	±1%

Advanced Features

Harmonic Analysis: Measures up to the 63rd harmonic for detailed power quality analysis
Communication Interfaces: Ethernet (Modbus TCP/IP, 10/100 Mbit/s) and RS485 (Modbus RTU/ASCII)
Digital I/O: 4 Digital Inputs / 2 Digital Outputs
Alarm Records: 52 alarm records for monitoring and troubleshooting
Data Logging: Event records, maintenance records, min/max instantaneous values
Storage Capacity: 1.1 MB for measurement data and logs

Environmental & Mechanical Specifications

Operating Temperature	-25 °C to 70 °C
Humidity	Up to 95% (non-condensing)
Dimensions	96 mm (width) x 72 mm (depth) x 96 mm (height)
Weight	0.43 kg (0.94 lbs)
IP Rating	Front display - IP52; Meter body - IP30 (except connectors); Connectors - IP20 with terminal covers installed, IP10 without terminal covers

Packing & Delivery

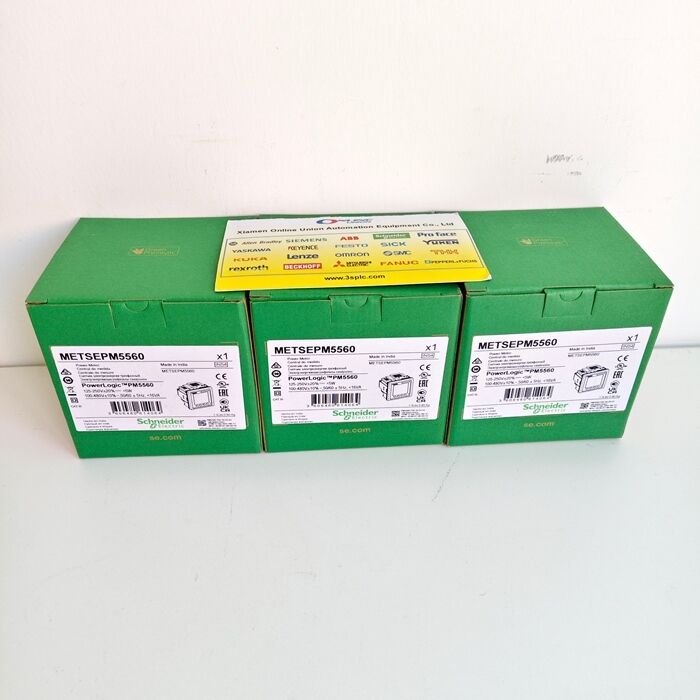

100% Brand New and Original Factory Seal
Warranty: 1 year

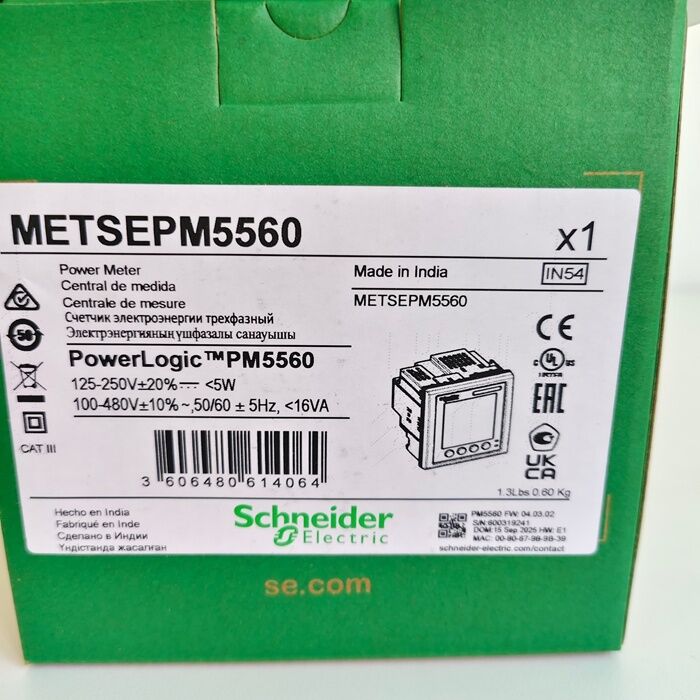

Package: Original packing with cartons
Delivery Time: Shipped in 3-7 days after payment
Quality Assurance: All goods tested before shipment
