Product Description

BCH2MM2023CA6C Schneider High-performance Servo Motor

The Schneider Electric BCH2MM2023CA6C is a high-performance servo motor engineered for precision control in industrial automation applications. Part of the BCH2 series, this motor features compact dimensions, robust construction, and exceptional efficiency. Ideal for robotics, packaging machinery, textile equipment, and CNC systems across various industrial sectors.

Technical Specifications

Model	BCH2MM2023CA6C
Brand	Schneider Electric
Series	BCH2
Power Rating	2000 W (2.7 HP)
Rated Voltage	220 V AC (Three-phase)
Rated Current	11.25 A (or 32.85 A under specific conditions)
Rated Speed	3000 rpm
Maximum Torque	9.55 N-m (Continuous stall torque)
Peak Torque	Higher than continuous torque, suitable for short-duration overloads
Torque Constant	0.96 N-m/A
Back EMF Constant	58 V/krpm
Rotor Inertia	13.5 kg*cm²
Shaft Diameter	22 mm (0.87 inches)
Shaft Length	2.17 inches (55.12 mm)
Flange Size	130 mm x 130 mm (5.12 inches x 5.12 inches)
Mounting Type	Flange mounting
Cooling Method	Natural convection
Enclosure Rating	IP50/IP65 (depending on configuration)
Operating Temperature	-20°C to 40°C
Weight	Approximately 9.7 kg
Connector Type	MIL Special Features connector
Keyed Shaft	Yes
Oil Seal	Included

Key Features

Compact design with robust construction for industrial environments
High efficiency operation with precision control capabilities
Dual IP50/IP65 protection rating for dust and limited water resistance
Keyed shaft design for secure mechanical coupling
Integrated oil seal to prevent contamination and extend service life
MIL Special Features connector for reliable electrical connections

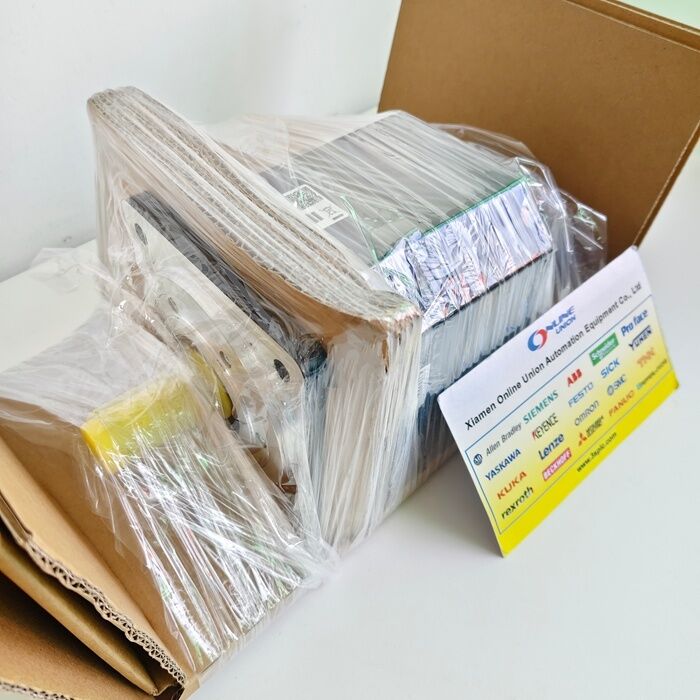

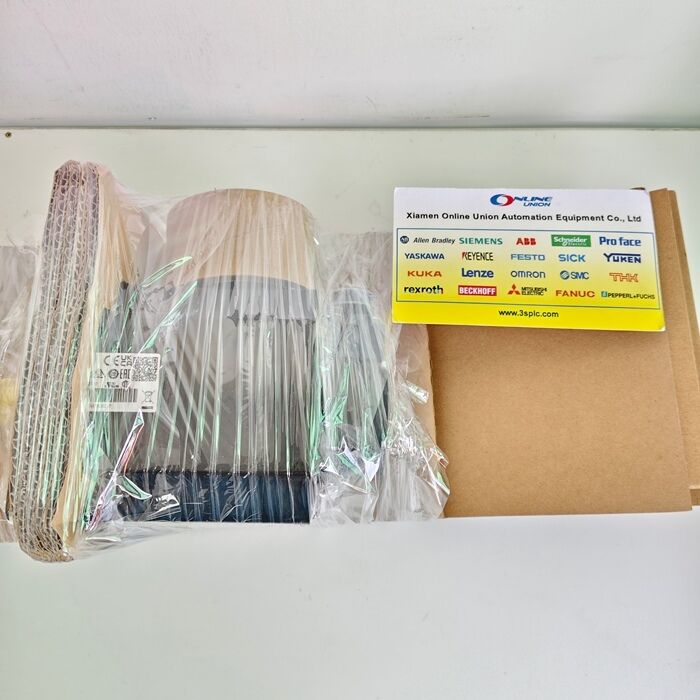

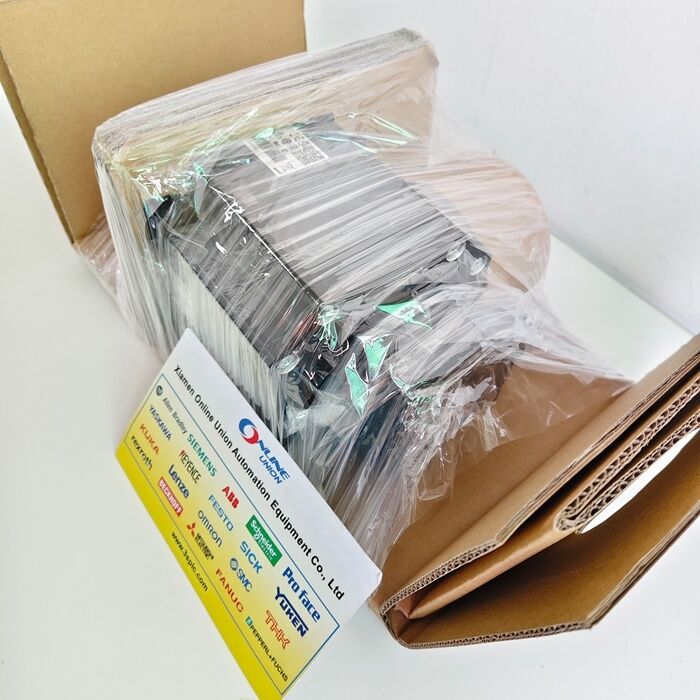

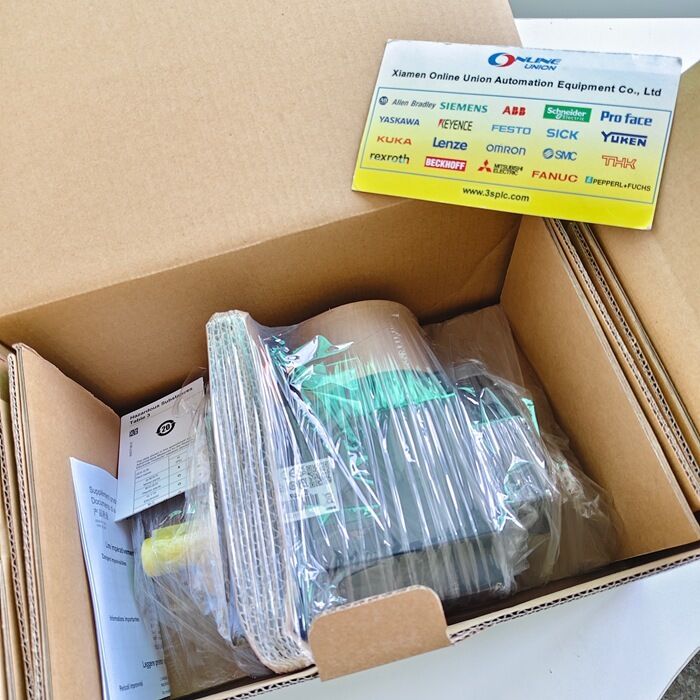

Packing & Delivery

100% brand new with original factory seal
1-year manufacturer warranty
Original packaging with protective cartons
Shipped within 3-7 days after payment confirmation
All products undergo comprehensive testing before shipment
