Product Description

XCSE7311 Schneider Plug-in Safety Door Lock Switch

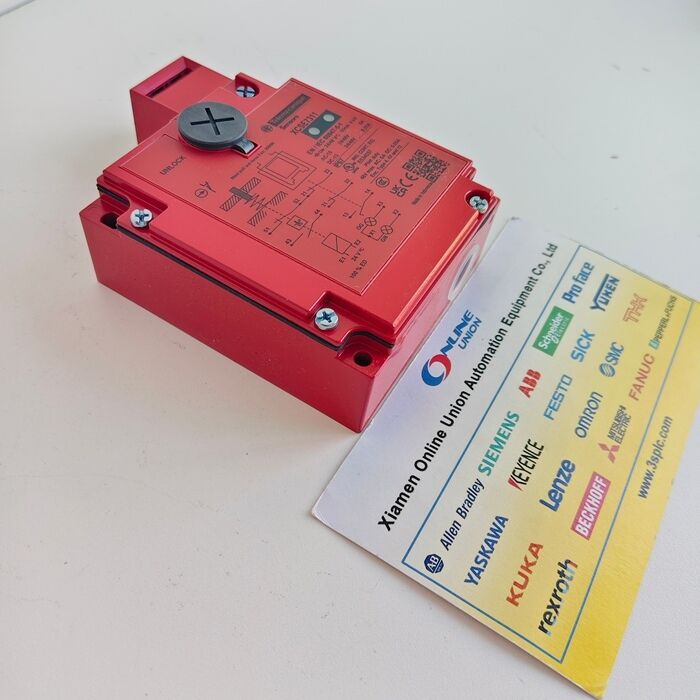

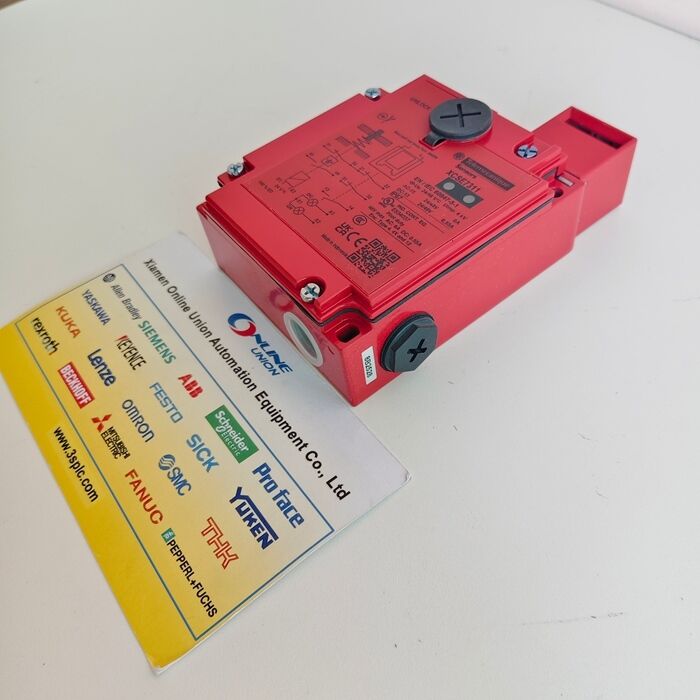

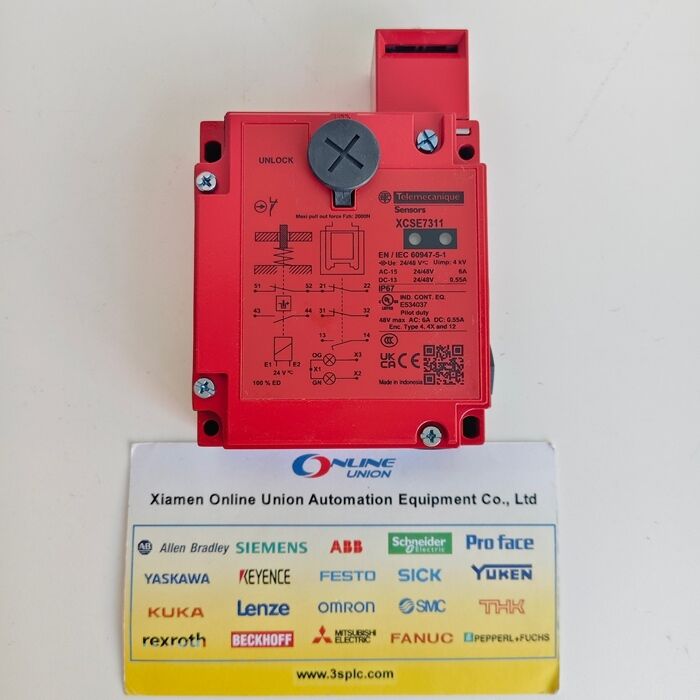

The XCSE7311 is a plug-in safety door lock switch from Schneider Electric's Telemecanique Safety switches XCS series. Designed for high safety and reliability in industrial applications, this switch features a durable metal housing and key-operated turret head.

The switch includes 2 normally closed (NC) contacts and 1 normally open (NO) contact with slow-break, break-before-make action for safe operation. An electromagnetic locking mechanism provides additional safety by locking when the solenoid is de-energized and unlocking when energized.

Technical Specifications

Product Series	Telemecanique Safety switches XCS
Component Name	XCSE
Design	Rectangular, metal housing
Manipulation Head Type	Key-operated turret head
Contact Type	2 NC + 1 NO
Contact Action	Slow-break, break-before-make
Electromagnetic Contact Type	1 NC + 1 NO (slow-break, simultaneous)
Cable Entry	2 entries tapped Pg 13.5
Electromagnetic Locking	Locks on de-energization and unlocks on energization of the solenoid
Rated Supply Voltage	24 V (-20...+10%)
Cable Outer Diameter	9...12 mm
Electrical Connection	Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end
Number of Poles	3
Locking Description	With interlocking, locking by solenoid
Local Signaling	2 LEDs (green or orange) for guard open/guard closed and locked status
Signaling Circuit Voltage	24/48 V (voltage limits: 20...52 V)
Rated Operational Current [Ie]	0.55 A at 126 V, DC-13, Q300 0.27 A at 250 V, DC-13, Q300 3 A at 120 V, AC-15, B300 1.5 A at 240 V, AC-15, B300 (conforming to EN/IEC 60947-5-1)
Rated Insulation Voltage [Ui]	50 V for signaling circuit (conforming to EN/IEC 60947-1)
Rated Impulse Withstand Voltage [Uimp]	6 kV (conforming to EN/IEC 60947-5-1)
Power Consumption	10 VA (sealed), 10 VA (inrush)
Mechanical Durability	>= 1,000,000 cycles
Minimum Actuation Speed	0.01 m/s
Maximum Actuation Speed	0.5 m/s
Operating Force	20 N
IP Rating	IP67 (conforming to EN/IEC 60529 and EN/IEC 60947-5-1)
Operating Temperature	-25...40°C
Storage Temperature	-40...70°C
Vibration Resistance	5 gn (f = 10...500 Hz) (conforming to IEC 60068-2-6)
Shock Resistance	10 gn for 11 ms (conforming to IEC 60068-2-27)
